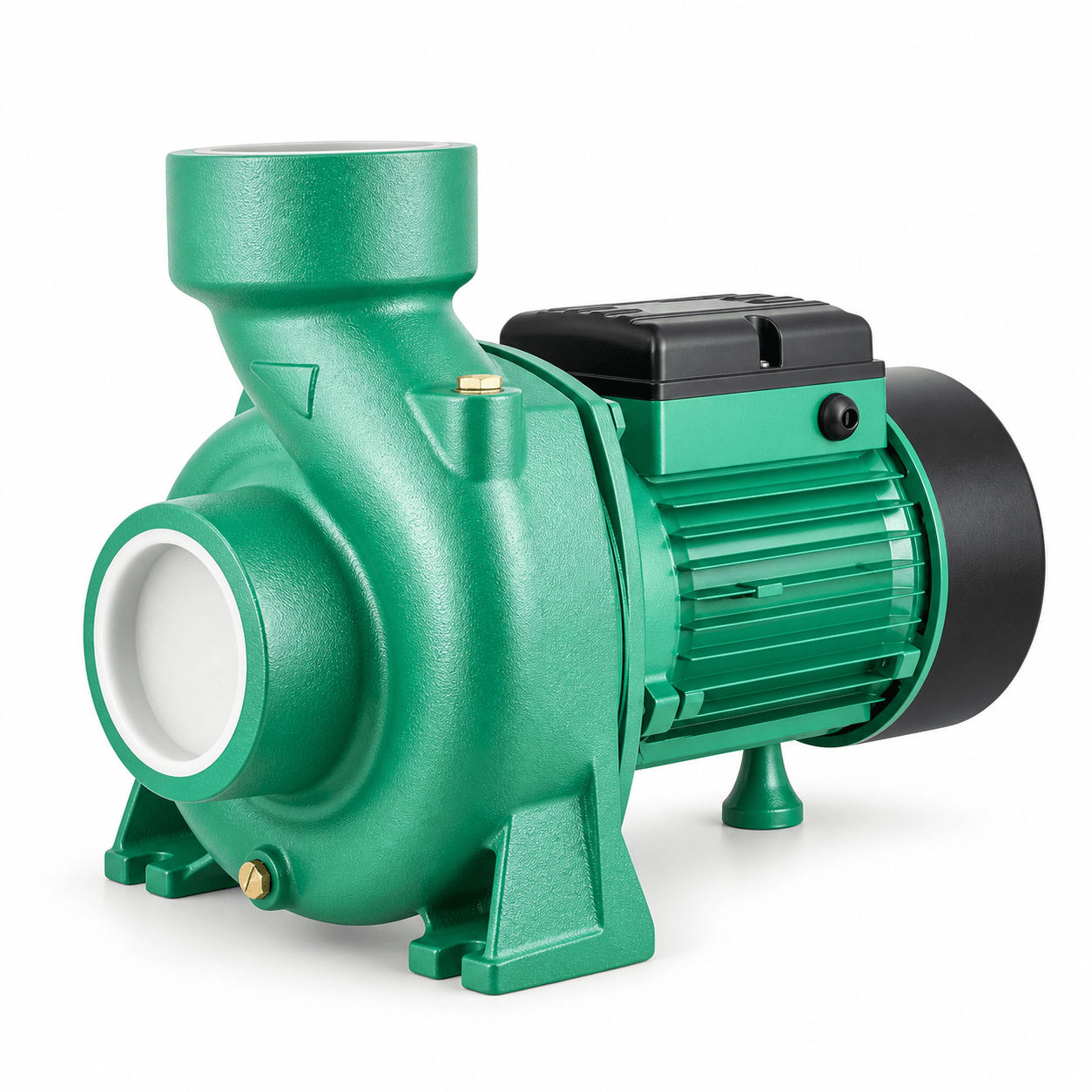

PRODUCT INFORMATION

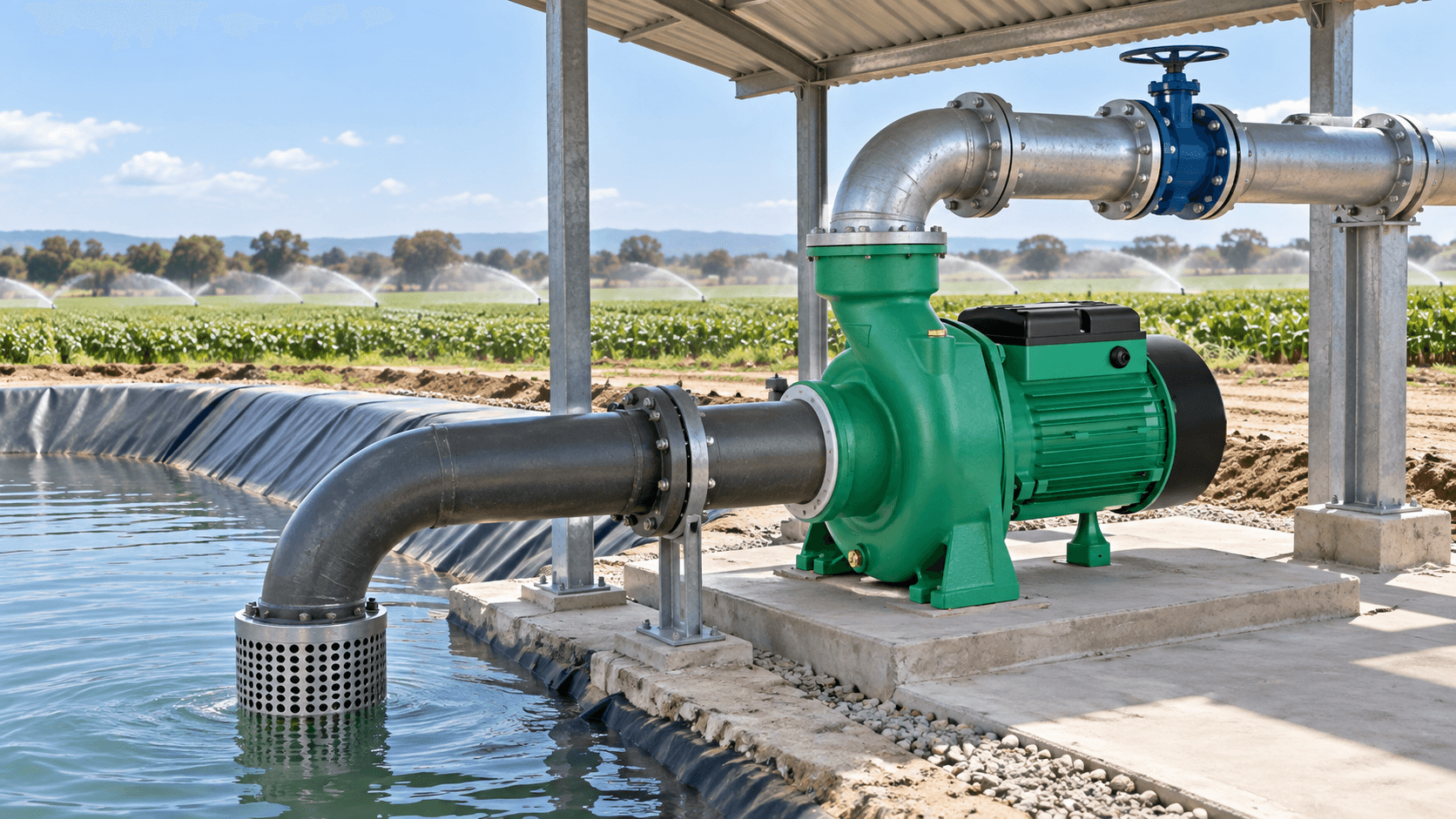

SHF centrifugal pumps are designed for civil and agricultural clean-water duties where high flow is more important than high pressure. Their continuous-duty layout suits flood and spray irrigation, drawing from lakes, rivers and wells, and industrial transfer systems operating at medium-to-low total head.
ENGINEERING DETAILS
The product introduction is summarized above. This section continues with the functional design, permitted operating conditions and model-code structure.
Large 3- or 4-inch waterways prioritize volume at moderate head.
The pump body and bracket use an electrophoretic coating for a durable finish.
A brass impeller, AISI 304 welded shaft and graphite-to-ceramic mechanical seal form the wet-end system.
Copper winding, C&U bearings, Class F insulation and thermal protection on single-phase versions support regular service.
Pump clean water or compatible non-aggressive liquids; maximum liquid temperature is +60 °C.
Maximum ambient temperature: +40 °C; maximum suction lift: 8 m.
Install in an enclosed location or under effective shelter from inclement weather.
Standard single-phase design supports a 160–230 V range; other voltages or 60 Hz are available on request.
APPLICATION FIT
Use the application and construction check below before comparing model numbers. Final selection is always made at the actual operating point.
High-volume transfer at moderate head.
Check inlet screening and suction arrangement.
Confirm pressure at the required flow.
For clean liquids with water-like properties.
MODEL SELECTION
Shortlist by flow and total head first. Motor power, connection and construction are verified after the duty point is known.
| Model | Power | HP | Maximum flow | Maximum head | Maximum suction | Inlet / outlet | Gross weight | Packing size |
|---|---|---|---|---|---|---|---|---|
| MHF6C | 1.1 kW | 1.5 HP | 30 m³/h | 14 m | 8 m | 3" × 3" | 25 kg | 425 × 260 × 325 mm |
| MHF6B | 1.5 kW | 2 HP | 45 m³/h | 14 m | 8 m | 3" × 3" | 28.5 kg | 425 × 260 × 325 mm |
| MHF6A | 2.2 kW | 3 HP | 48 m³/h | 15 m | 8 m | 3" × 3" | 31 kg | 425 × 260 × 325 mm |
| 3SHFm1100 | 1.1 kW | 1.5 HP | 50 m³/h | 16 m | 8 m | 3" × 3" | 27.8 kg | 450 × 265 × 340 mm |
| 3SHFm1500 | 1.5 kW | 2 HP | 50 m³/h | 16 m | 8 m | 3" × 3" | 29 kg | 450 × 265 × 340 mm |
| 4SHFm2200 | 2.2 kW | 3 HP | 65 m³/h | 14 m | 8 m | 4" × 4" | 30 kg | 450 × 265 × 340 mm |
TECHNICAL LIBRARY

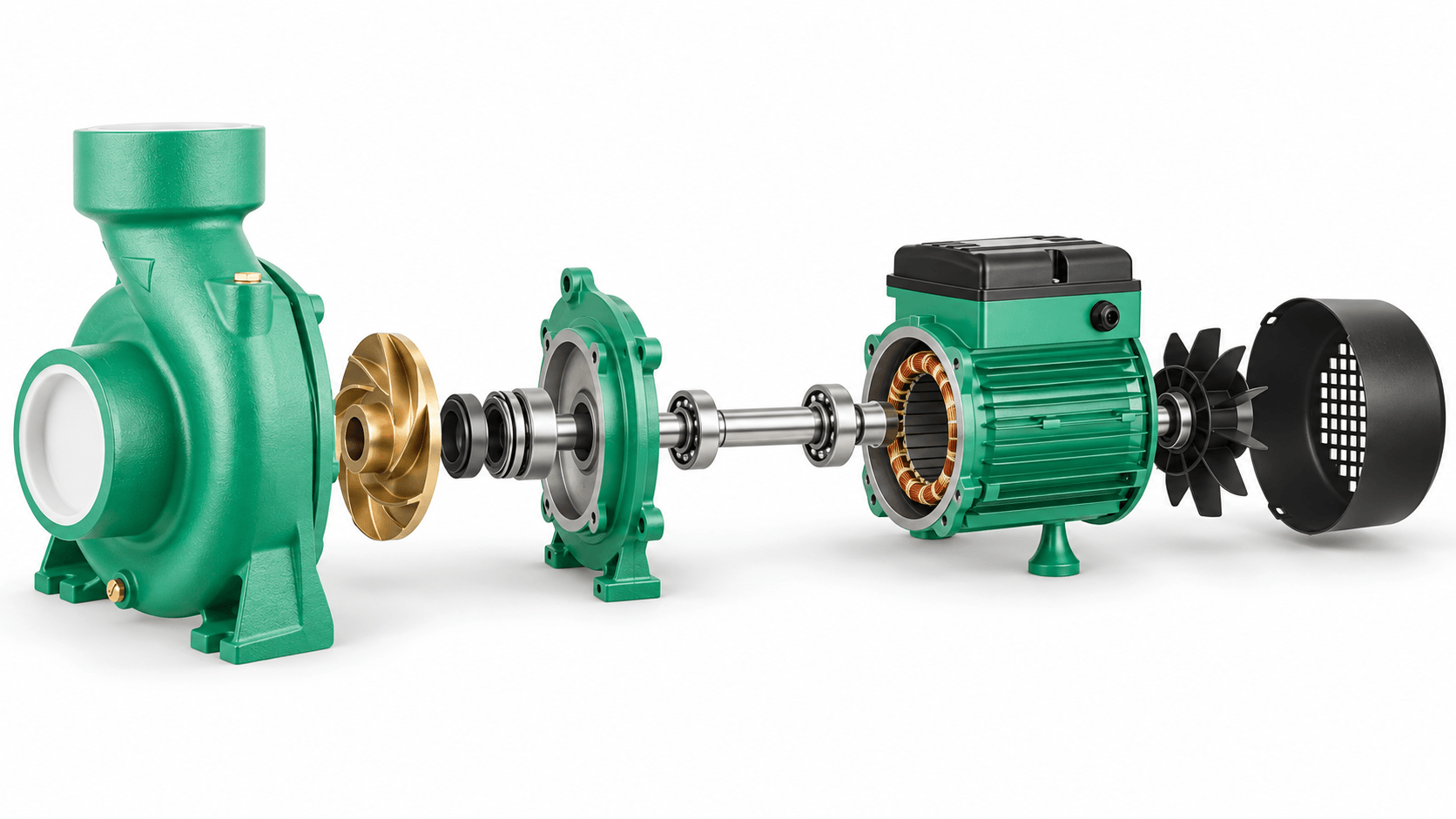

Switch between the complete pump and its construction view, then use the numbered parts index for identification.
This interactive view explains the SHF hydraulic, sealing, drive, motor and cooling groups. It is a construction guide rather than a model-specific spare-parts drawing; confirm service part numbers before ordering.
REQUEST SELECTION
Motor power alone is not enough to select a pump reliably.
