PRODUCT INFORMATION

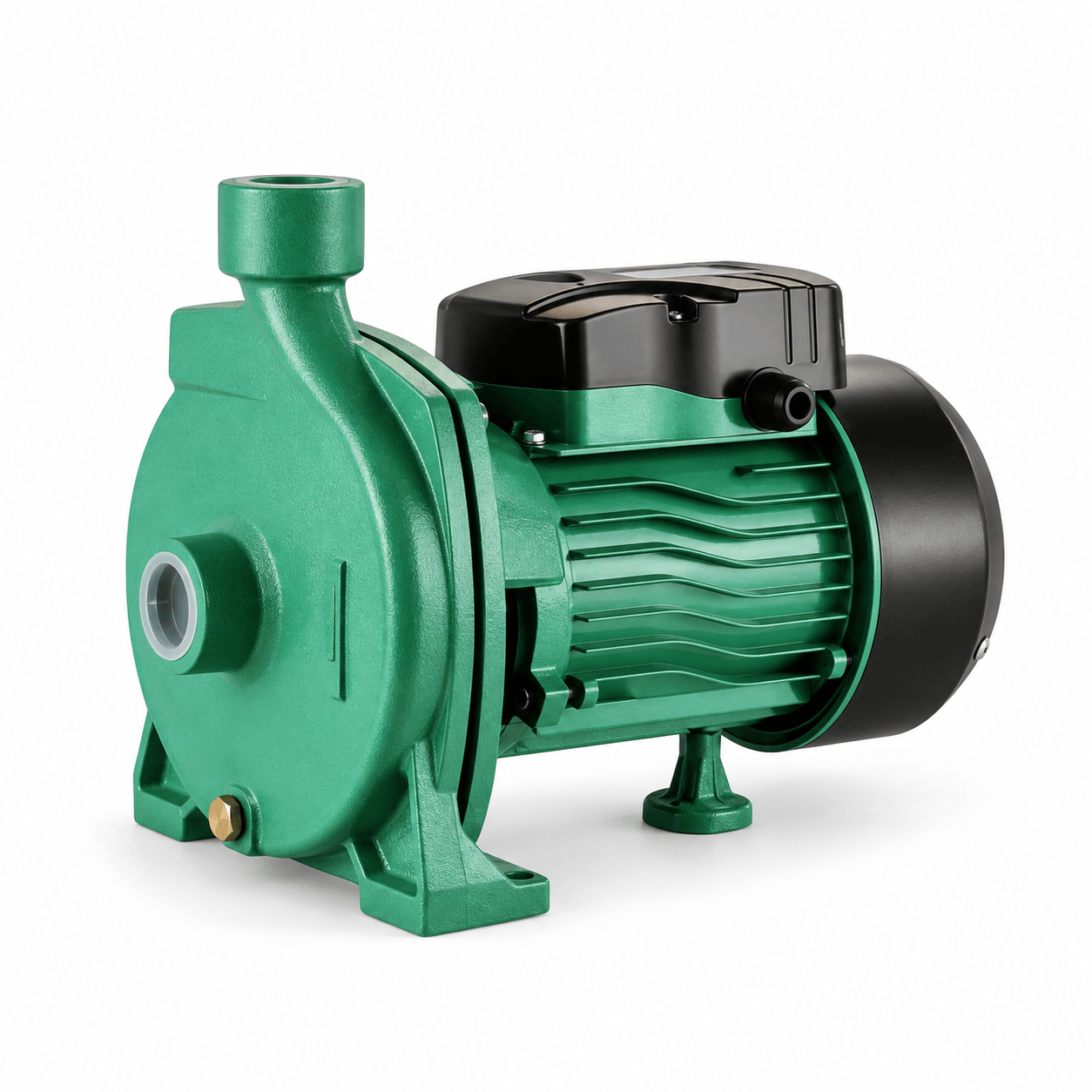

CPM centrifugal pumps move clean water and other non-aggressive liquids with water-like properties. Their broader power range supports industrial and urban supply, building pressure support, garden irrigation, long-distance transfer, HVAC circulation and integration with supporting equipment.
ENGINEERING DETAILS
The product introduction is summarized above. This section continues with the functional design, permitted operating conditions and model-code structure.
The family extends from 0.37 to 1.5 kW for a practical progression in flow and head.
Stainless-steel or brass impellers are used according to model configuration.
The pump body and support provide a stable surface-mounted construction.
External ventilation and Class B or F insulation support normal continuous duty.
Pump clean water or a non-aggressive liquid with similar physical and chemical properties.
Maximum liquid temperature: +40 °C; maximum ambient temperature: +40 °C.
Maximum suction lift: 8 m; keep the suction line short, airtight and correctly primed.

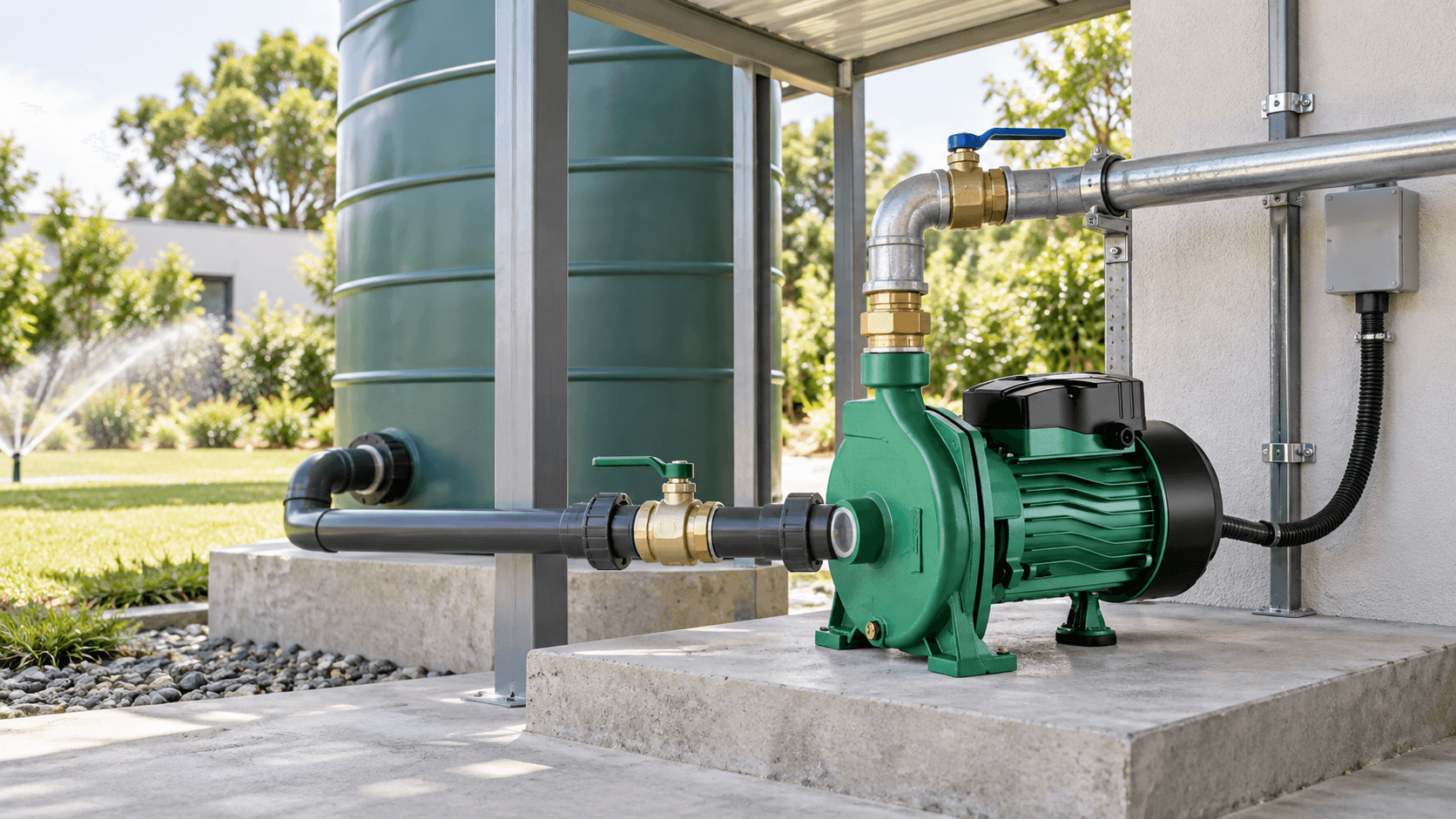

Protection class: IPX4. Install the unit in a dry, sheltered and ventilated location.
APPLICATION FIT
Use the application and construction check below before comparing model numbers. Final selection is always made at the actual operating point.
Clean-water transfer and pressure support.
Project selection requires verified duty and local compliance.
Circulation for clean-water auxiliary systems.
Transfer duty with confirmed suction conditions.
MODEL SELECTION
Shortlist by flow and total head first. Motor power, connection and construction are verified after the duty point is known.
| Model | Power | HP | Maximum flow | Maximum head | Maximum suction | Inlet / outlet | Gross weight | Packing size |
|---|---|---|---|---|---|---|---|---|
| CPM-130 | 0.37 kW | 0.5 HP | 80 L/min | 20 m | 8 m | 1" × 1" | 9 kg | 275 × 180 × 230 mm |
| CPM-146 | 0.55 kW | 0.75 HP | 95 L/min | 25 m | 8 m | 1" × 1" | 11 kg | 330 × 210 × 265 mm |
| CPM-158 | 0.75 kW | 1.0 HP | 120 L/min | 30 m | 8 m | 1" × 1" | 12 kg | 350 × 205 × 270 mm |
| CPM-180 | 1.1 kW | 1.5 HP | 130 L/min | 35 m | 8 m | 1" × 1" | 21 kg | 400 × 240 × 310 mm |
| CPM-200 | 1.5 kW | 2.0 HP | 140 L/min | 40 m | 8 m | 1" × 1" | 23 kg | 400 × 240 × 310 mm |
TECHNICAL LIBRARY

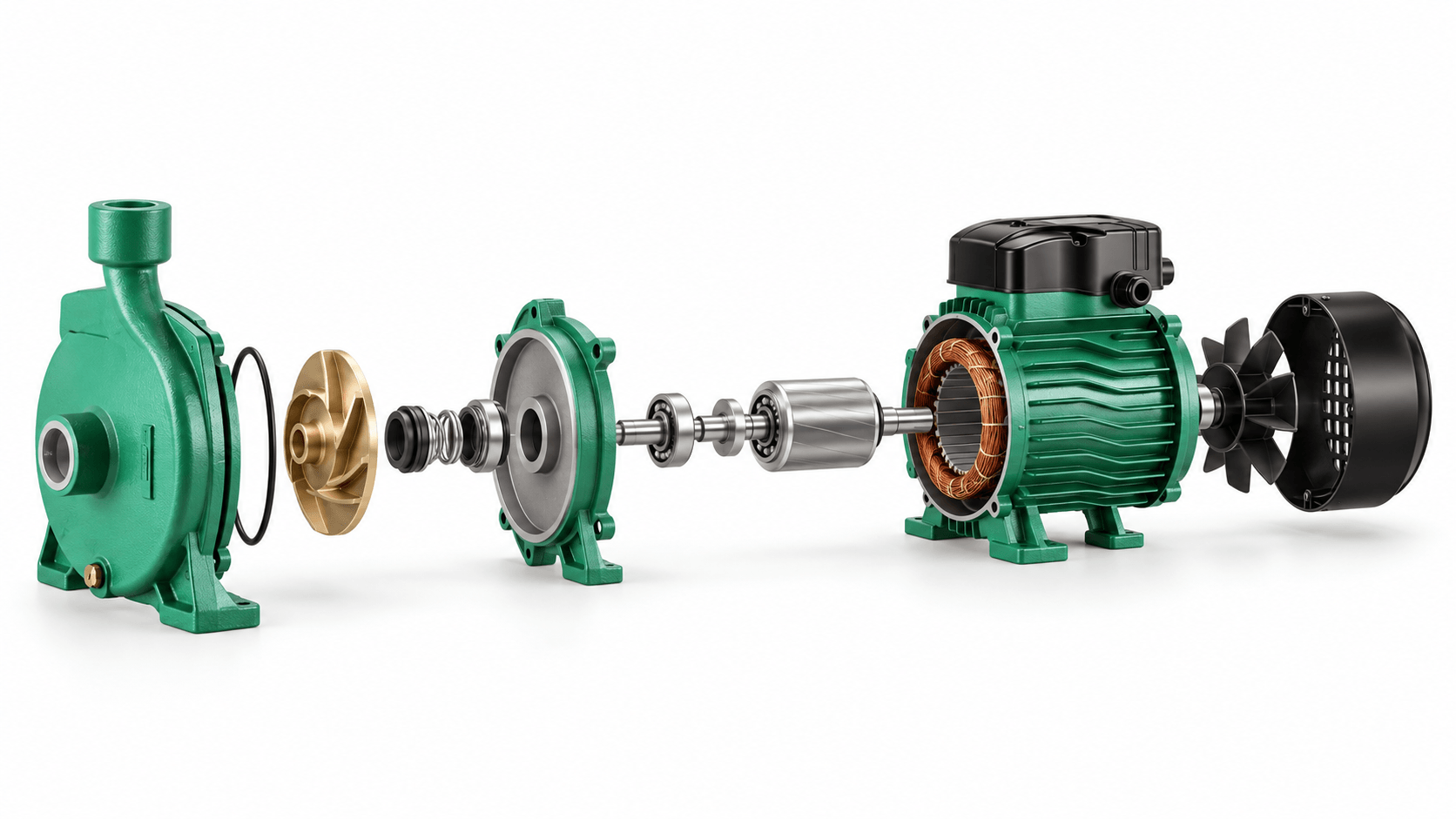

Switch between the complete pump and its construction view, then use the numbered parts index for identification.
This interactive view explains the hydraulic, sealing, drive, motor and cooling groups. It is a construction guide rather than a model-specific spare-parts drawing; confirm service part numbers before ordering.
REQUEST SELECTION
Motor power alone is not enough to select a pump reliably.
