Start with required flow
For duties up to 140 L/min, compare SCM and CPM first. For 30–65 m³/h, start with SHF.
Technical selection, cross-reference and global export supportSend a model or application →
Clean-water transfer & pressure
Surface Centrifugal Pumps
Three clean-water centrifugal families, separated by the job: compact circulation, higher-head supply or high-volume transfer.
Choose the hydraulic character before the model. SCM suits compact circulation and utility transfer, CPM covers daily supply and higher-head pressure duties, while SHF moves much larger volumes through 3–4 inch pipework at moderate head. Final selection must still be confirmed at the actual duty point.

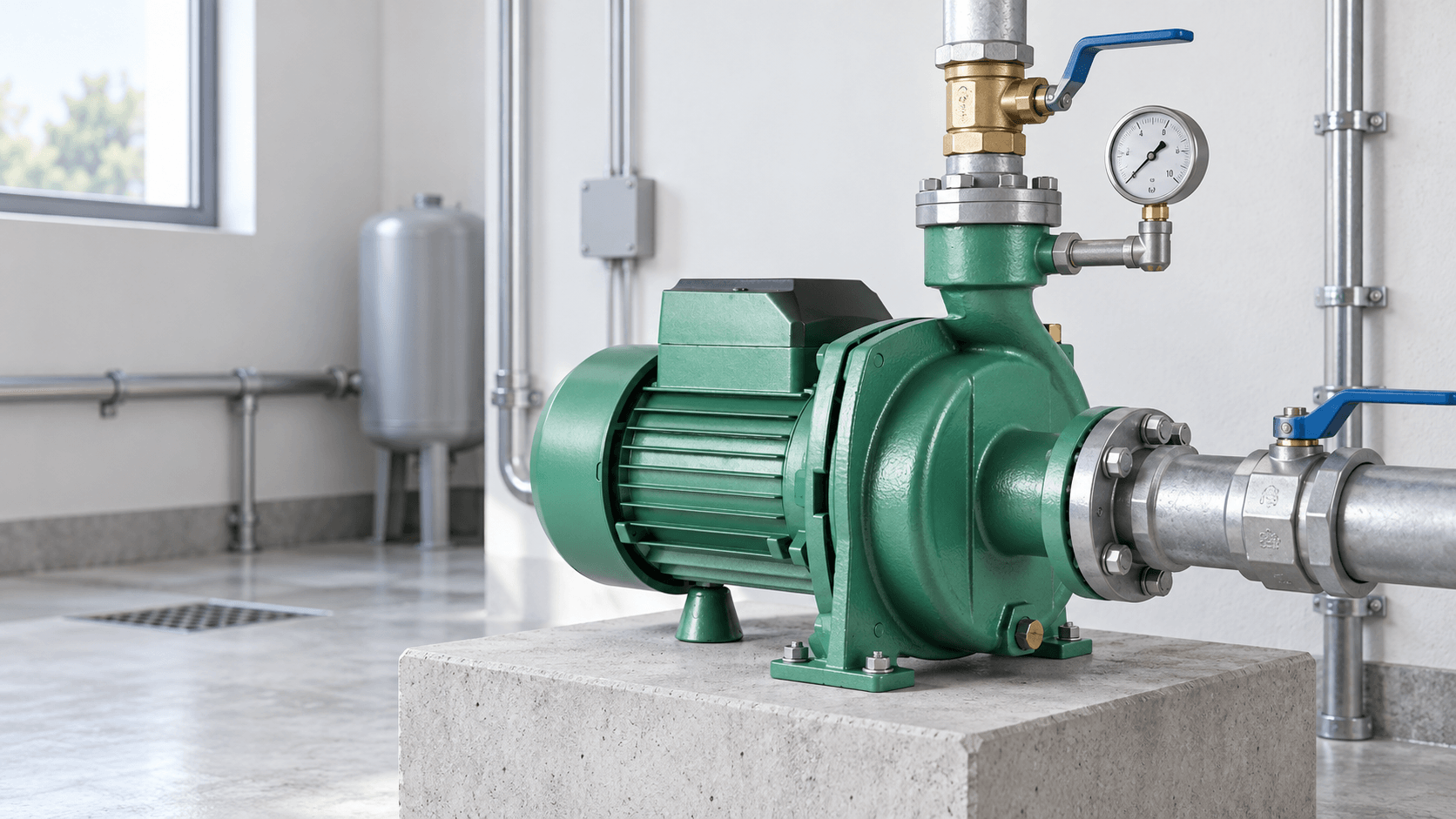

01 · COMPACT CIRCULATION & TRANSFER
Compact clean-water circulation.
For utility transfer, HVAC circulation, garden supply and building services where a compact pump and balanced duty are the priority.
- Flow character
- 80–120 L/min
- Head character
- 22–32 m
- Connections
- 1 in
DUTY-POINT GUIDE
Narrow the family before comparing models.
The three series do different hydraulic jobs. Use the required flow and total head first, then confirm installation conditions and the exact Q–H curve.
Then check total head
SCM reaches 22–32 m, CPM extends to 20–40 m, while SHF is designed around 14–16 m at much higher flow.
Match the installation
Confirm suction lift, priming and inlet losses. SCM and CPM use 1-inch connections; SHF uses 3–4-inch pipework.
Verify the operating point
Open the selected series and place the required flow and head on its Q–H curve before choosing the final model.
Selection rule: SCM for compact balanced duty, CPM when more head is needed, and SHF when the project is driven by large flow and large pipework.
OPERATING BOUNDARIES
Confirm the installation before the model.
The Q–H duty point selects the hydraulic size. These limits decide whether a surface centrifugal pump is suitable for the site at all.
02Selection brief
Send these four items once. They are enough to check the family, locate the duty point and shortlist a model.
Duty point
Required flow and total dynamic head, including static lift and pipe friction.
Water source
Tank, supply line, river, lake or well; include water level variation and suction arrangement.
Power & control
Voltage, frequency, phase, starting method and any pressure or flow control requirement.
Operating profile
Hours per day, starts per hour, ambient condition, quantity and delivery country.
ESSENTIAL QUESTIONS
What changes the selection?
Only the questions that affect suitability or move the duty point are kept here.
01Can SCM, CPM or SHF pumps handle dirty water?+
No. These families are intended for clean, non-aggressive water without abrasive particles, fibers or solids. Use a sewage or solids-handling pump for contaminated water.
02Is the 8 m suction lift guaranteed on site?+
No. It is a catalog maximum. Pipe friction, fittings, air leakage, water temperature, altitude and the actual water level reduce available suction performance.
03When should I choose a jet, peripheral or automatic booster pump instead?+
Choose a JSW jet pump when self-priming suction duty is central, a QB peripheral pump for compact high-head low-flow service, or an LW(Z) booster when automatic pressure control is required.
WHEN ANOTHER PUMP FITS BETTER
Change the pump type when the job changes.
These are not upgrades or downgrades. They solve different suction, pressure and control requirements.
01Need reliable self-priming?
JSW jet pumps
For shallow sources and suction-lift duties where self-priming behavior is a primary requirement.
Open product page →02Need compact high head at low flow?QB peripheral pumps
For domestic pressure support and small clean-water systems where compact size and head matter most.
Open product page →03Need automatic pressure control?LW(Z) booster pumps
For on-demand domestic supply with integrated pressure and flow response rather than a bare centrifugal pump.
Open product page →PUMP SELECTION
Send one complete duty brief.
Flow, total head, suction arrangement, liquid, power supply and operating profile are enough to begin.
