Can an SSI encoder replace a BiSS-C encoder?
Not without checking the controller. Both are clocked serial interfaces, but their frame behavior and supported features differ.
Technical selection, cross-reference and global export supportSend a model or application →
Encoder interface guide
SSI and BiSS-C Absolute Encoders
Compare SSI and BiSS-C absolute encoder feedback by clocking, data format, resolution, update behavior and controller compatibility.
DIRECT ANSWER
SSI and BiSS-C are synchronous serial interfaces used for deterministic absolute position feedback. The controller supplies a clock and the encoder returns a digital position word. They are not automatically interchangeable: clock rate, frame format, bit length, coding, error fields, electrical level and controller support must all match.
✓ Clocked absolute position data✓ Single-turn and model-dependent multi-turn formats✓ Deterministic controller acquisition✓ Protocol and frame compatibility must be confirmed
SELECTION TABLE
SSI and BiSS-C integration differences
Use this table as an initial engineering checklist. Final model configuration must be confirmed against the controller, mechanical drawing and operating environment.
Interface pointWhat to confirm
Clock and dataSupported clock frequency, electrical level, cable length and termination
Position wordSingle-turn bits, multi-turn bits, binary or Gray coding and bit order
Frame behaviorSSI timing or BiSS-C frame, status and error fields supported by the controller
MechanicsShaft, flange, housing, connector, speed and environmental rating
ENGINEERING PROCESS
How to select the right configuration
- 01
Identify the exact controller or drive interface specification.
- 02
Define required single-turn resolution and multi-turn range.
- 03
Match clock, data format, coding and electrical level.
- 04
Approve the mechanical drawing, wiring and complete model suffix.
RELEVANT PRODUCTS
Technical product pages
SSI / BiSS-C IP54 Absolute Encoder
Deterministic synchronous absolute feedback in a standard IP54 industrial housing.
View parameters and drawings →Mechanical Multi-turn IP54 Absolute Encoder
Battery-free IP54 geared turn counting retains absolute position through power loss.
View parameters and drawings →

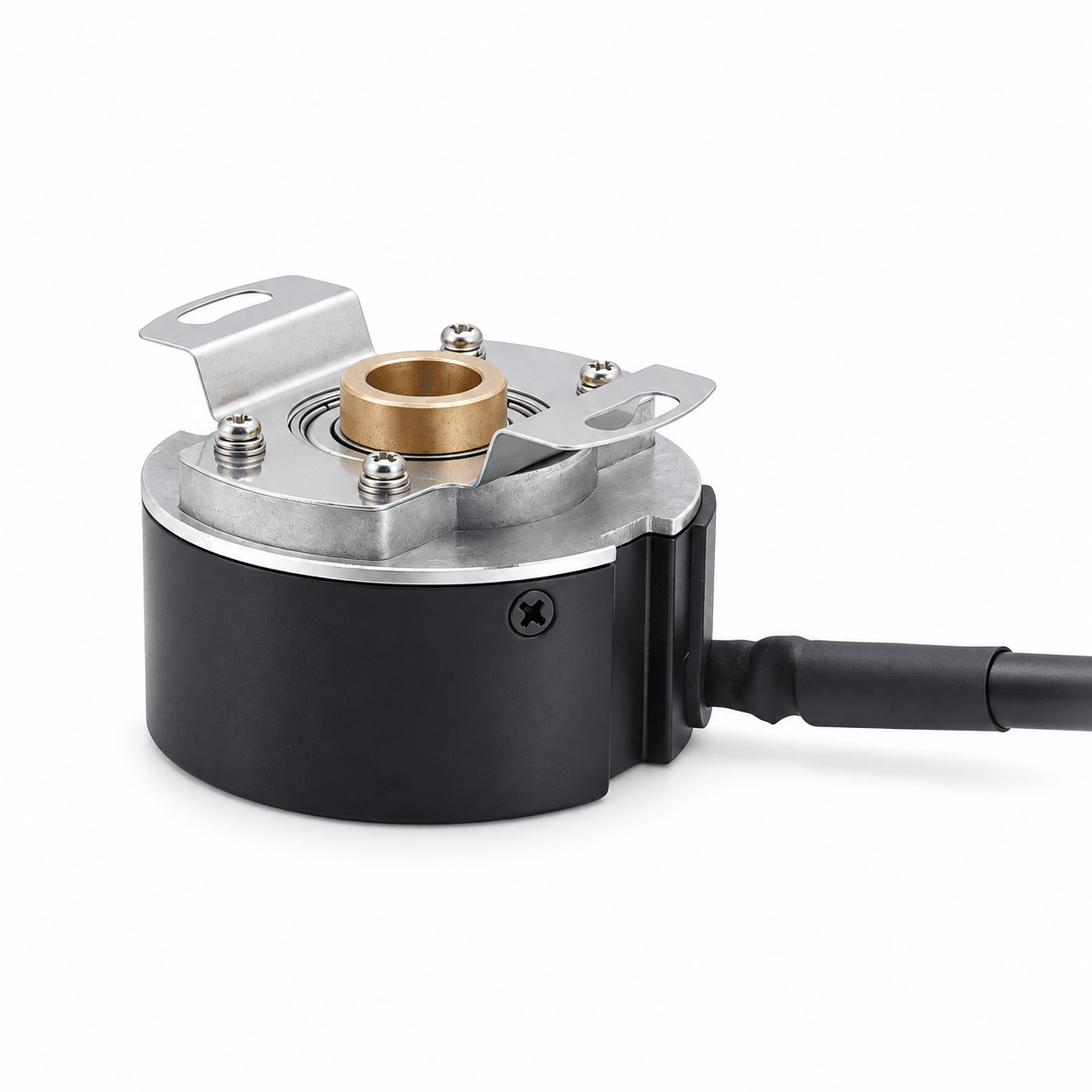

Servo Motor Spindle Absolute Encoder
High-precision optical-grating absolute feedback for servo motors, CNC spindles and precision drive systems.
View parameters and drawings →COMMON QUESTIONS
Frequently asked questions
What does encoder bit length mean?
It defines how many digital values are available for the measured position. Multi-turn devices can specify separate within-turn and turn-count fields.
Is Gray code required for SSI?
Some SSI systems use Gray code and others use binary. The encoder output and controller decoding must match.
