Does an RS485 encoder always use Modbus RTU?
No. RS485 defines the electrical layer, while Modbus RTU is one possible protocol. Confirm the protocol and register mapping before replacement.
Technical selection, cross-reference and global export supportSend a model or application →
Encoder interface guide
RS485 Modbus RTU Absolute Encoders
Select RS485 Modbus RTU absolute encoders by turn range, resolution, register format, shaft, flange and environmental protection.
DIRECT ANSWER
An RS485 Modbus RTU absolute encoder reports a digital position value over a noise-resistant differential bus. It is a practical choice when a PLC or industrial controller needs absolute angle or turn data, configurable addressing and longer cable runs. Final selection must match the controller register map, supply, baud rate and mechanical installation.
✓ Single-turn and mechanical multi-turn options✓ Position and configurable speed feedback✓ Common 5–24 VDC variants✓ Standard, IP68 and explosion-protected configurations
SELECTION TABLE
RS485 encoder information to confirm
Use this table as an initial engineering checklist. Final model configuration must be confirmed against the controller, mechanical drawing and operating environment.
Selection itemWhat to verify
CommunicationModbus RTU or supplier-specific RS485; address, baud rate, parity and register order
MeasurementSingle-turn angle or multi-turn position; required resolution and turn range
MechanicalHousing diameter, solid or blind-hollow shaft, flange and connector direction
EnvironmentTemperature, vibration, water exposure and required protection rating
ENGINEERING PROCESS
How to select the right configuration
- 01
Send the existing model, label photo or controller requirement.
- 02
Confirm resolution, turn range and whether position must survive power loss.
- 03
Match Modbus settings, register format, supply and wiring.
- 04
Approve the shaft, flange, cable exit and controlled drawing before quotation.
RELEVANT PRODUCTS
Technical product pages

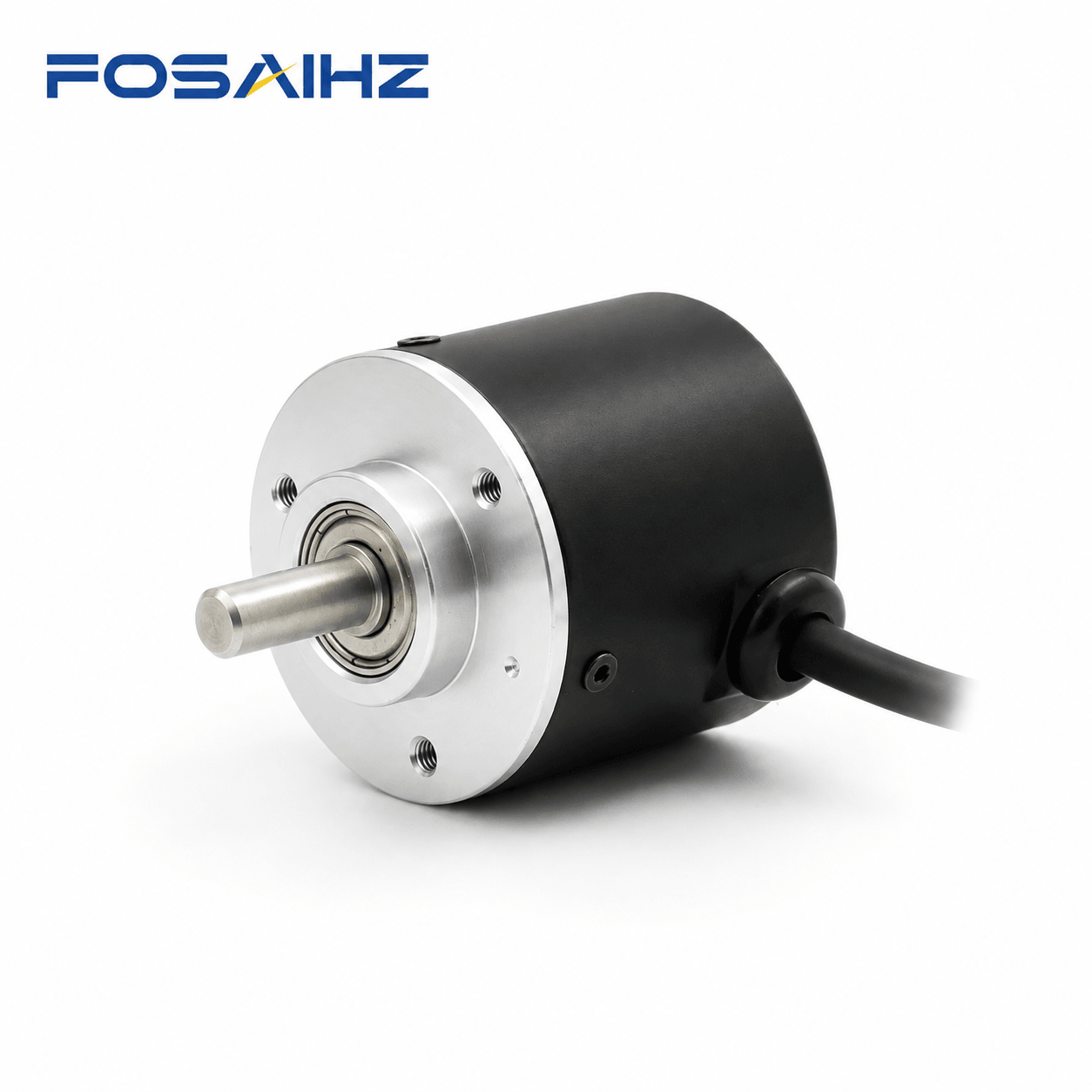

RS485 Modbus RTU Absolute Rotary Encoder
Single-turn or battery-free mechanical multi-turn absolute position feedback with power-off memory and programmable Modbus RTU parameters.
View parameters and drawings →Mechanical Multi-turn IP54 Absolute Encoder
Battery-free IP54 geared turn counting retains absolute position through power loss.
View parameters and drawings →
RS485 Modbus Draw-wire Displacement Sensor
Absolute linear position and speed feedback with power-off memory for short, medium and long travel.
View parameters and drawings →COMMON QUESTIONS
Frequently asked questions
Can an RS485 absolute encoder retain position after power loss?
Single-turn absolute position is retained by the sensing technology. Multi-turn retention depends on the encoder design, such as mechanical turn counting or another specified method.
What causes an RS485 replacement encoder to show the wrong value?
Common causes include register byte order, scaling, counting direction, preset value, baud rate, address and wiring polarity mismatches.
RELATED GUIDANCE
Continue your selection
EDITORIAL SCOPE
How this guidance is prepared
FOSAI consolidates available supplier technical material into a buyer-oriented selection guide. Parameters, certifications and compatibility are not generalized across every model; the final suffix, controlled drawing and project conditions must be confirmed before ordering.
