What the system must achieve
Preserve accurate speed or position feedback through repetitive operation and cleaning without allowing water, chemistry or cabling to become the weak point.
Technical selection, cross-reference and global export supportSend a model or application →
Application guide
Encoders for Washdown Production Lines
Select IP68 encoders for conveyors, indexing, rollers and position feedback in wet and regularly cleaned production areas.

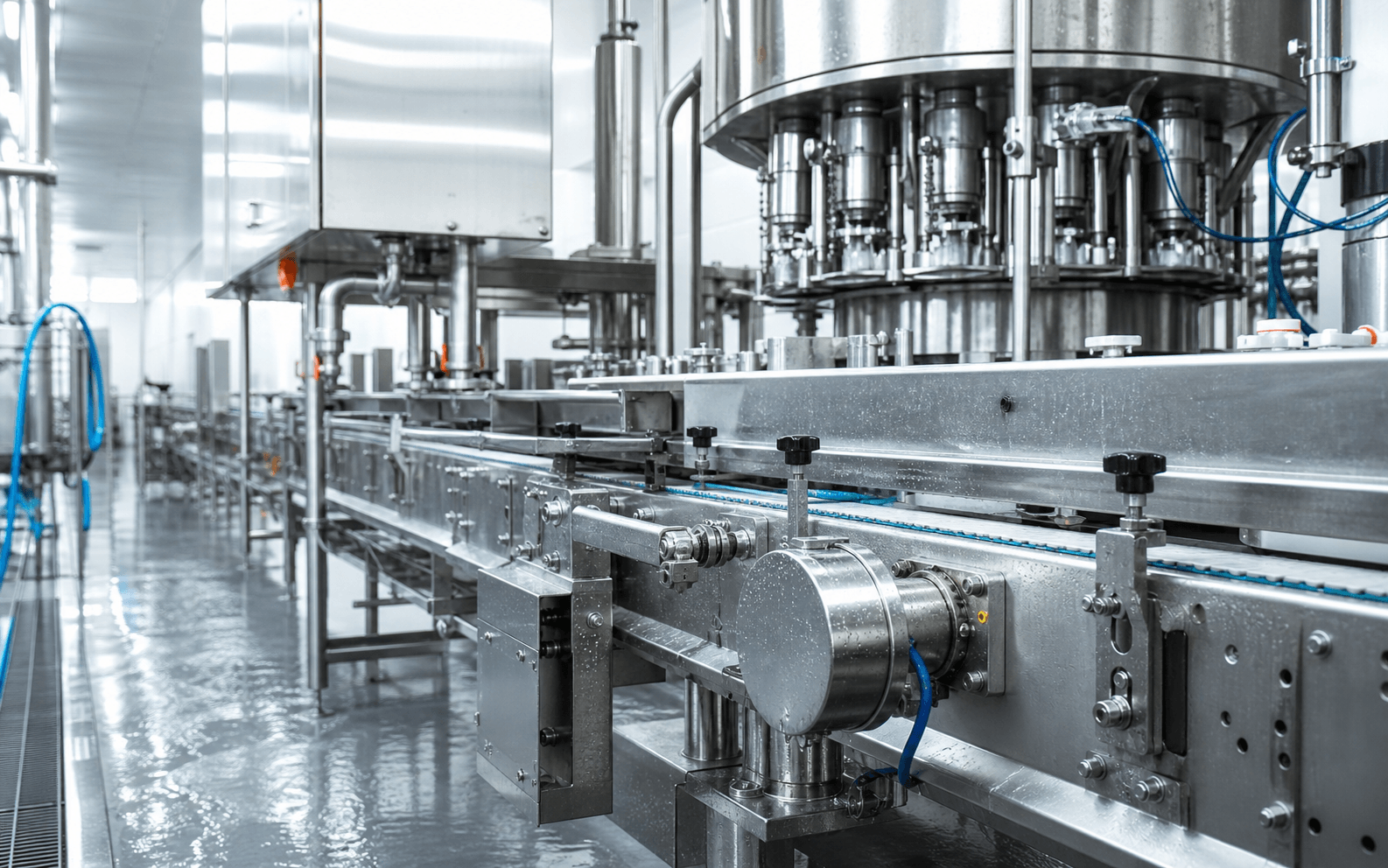

01 · THE MACHINE
Cleaning conditions are part of the sensor specification.
Conveyors, indexing stations, rollers and format adjustments may need different feedback. Document whether the line sees rinse water, pressure jets, hot water or cleaning chemicals before selecting the enclosure.
In plain termsFirst identify the movement the controller needs to know. Only then choose the encoder.
02 · WHAT TO MEASURE

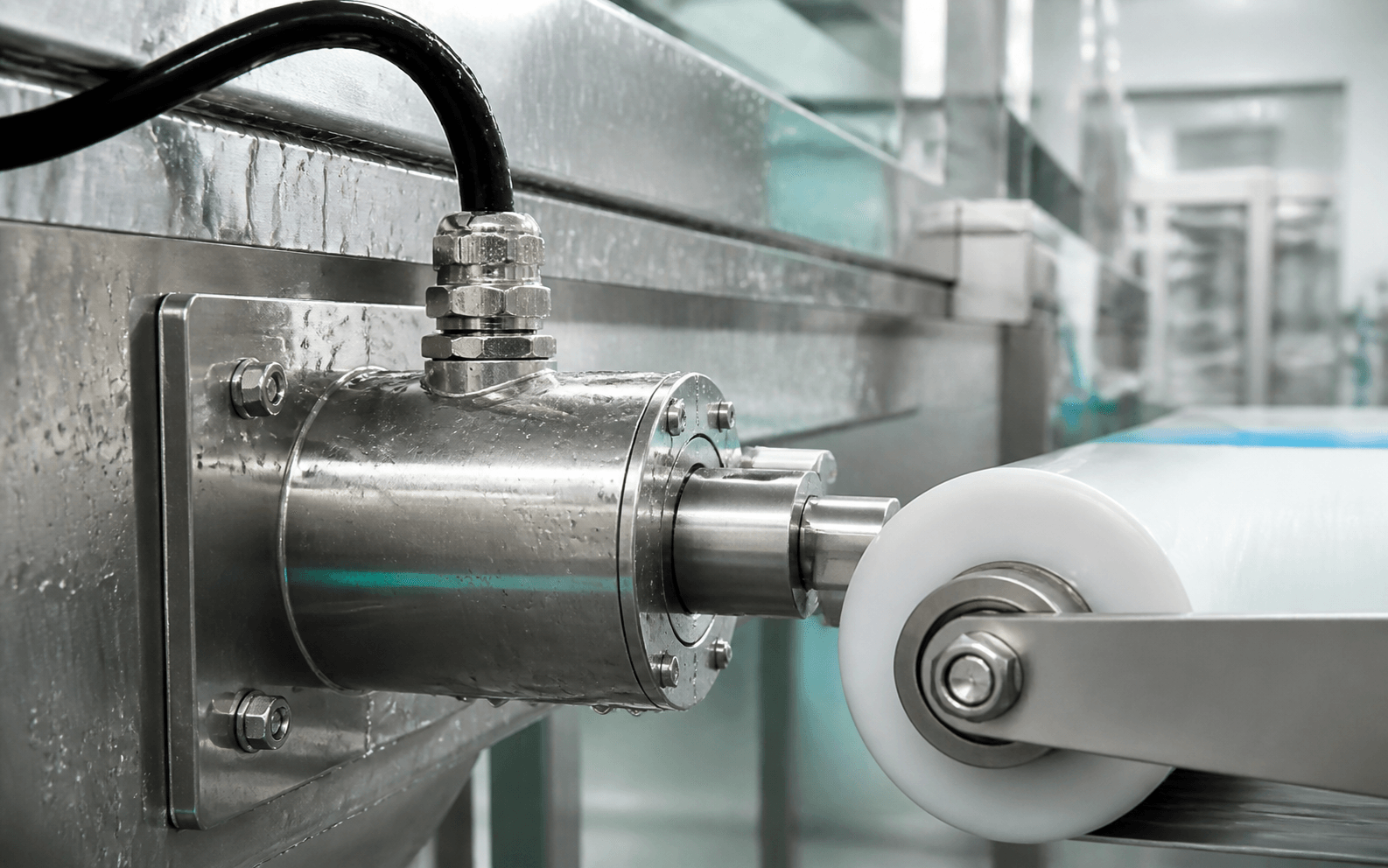

Seal the complete installation—not only the encoder body.
The shaft interface, cable gland, connector direction and nearby surfaces all affect washdown reliability. Cleaning pressure, temperature and chemistry remain project-specific checks.
- ✓Stainless interface
- ✓Sealed entry
- ✓Washdown clearance
VIEW PRODUCT PAGE →03 · RECOMMENDED PRODUCT
RS485 Modbus RTU IP68 Waterproof Absolute Encoder
IP68 is a starting point—not a complete washdown statement.
Select incremental feedback for speed or length and absolute feedback for retained position. Then verify stainless materials, seals, connector orientation, wash pressure and chemical compatibility.
✓ Conveyor speed and length✓ Indexed and retained position✓ Stainless-steel IP68 options✓ Cleaning-agent and connector review
View product parameters →04 · HOW IT WORKS
From machine movement to a control decision.
The encoder closes the information gap between a moving production line and the PLC.
WHAT THE SENSOR DOES
Incremental pulses can represent conveyor speed and travelled length. Absolute feedback can represent indexed stations and retained format positions. The controller converts the selected signal into the machine value used by its motion sequence.
- 01MOVEMENTLine movement
- 02SENSINGPulse / absolute value
- 03SIGNALPLC scaling
- 04CONTROLSpeed or position control
How we select the sensor
Choose incremental or absolute feedback from the control task, calculate the required resolution, and match the electrical input. Then document wash pressure, temperature, chemicals, connector orientation and stainless material requirements.
05 · EXPECTED RESULT
What improves after the correct feedback is installed.
SELECTION TABLE
Washdown line measurement tasks
Use this table as an initial engineering checklist. Final model configuration must be confirmed against the controller, mechanical drawing and operating environment.
Line functionRecommended feedback approach
Conveyor speed or cut lengthIncremental encoder matched to PPR, maximum frequency and PLC input
Indexed stationAbsolute encoder when position must return without homing
Roller or format adjustmentRotary encoder selected by turn range, interface and mechanical ratio
Wet cleaning zoneIP68 stainless construction plus verified seals, cable and chemical compatibility
ENGINEERING PROCESS
How to select the right configuration
- 01
Define whether the controller needs speed, length or absolute position.
- 02
Calculate PPR or bit resolution from the machine mechanics.
- 03
Match the output circuit or protocol and maximum update requirement.
- 04
Document wash pressure, temperature, chemistry, frequency, cable routing and connector sealing.
RELEVANT PRODUCTS
Technical product pages
RS485 Modbus RTU IP68 Waterproof Absolute Encoder
Stainless-steel IP68 absolute feedback for washdown and outdoor machinery.
View parameters and drawings →
Industrial Incremental Rotary Encoder
Configurable pulse feedback for speed, direction, counting and relative position measurement.
View parameters and drawings →SSI / BiSS-C IP68 Waterproof Absolute Encoder
Stainless-steel IP68 absolute feedback for washdown and precision machinery.
View parameters and drawings →COMMON QUESTIONS
Frequently asked questions
Is an IP68 encoder safe for high-pressure washdown?
Not automatically. IP68 and high-pressure jet resistance are different conditions; confirm pressure, temperature, distance, cleaning cycle and all sealing interfaces.
Should a conveyor use absolute or incremental feedback?
Incremental feedback is common for speed and length. Absolute feedback is useful for indexed axes or retained changeover positions.
Why is stainless steel important?
It can improve corrosion resistance and cleanability, but the complete installation—including shaft, fasteners, coupling, connector and cable—must be compatible with the cleaning environment.
RELATED GUIDANCE
Continue your selection
EDITORIAL SCOPE
How this guidance is prepared
FOSAI consolidates available supplier technical material into a buyer-oriented selection guide. Parameters, certifications and compatibility are not generalized across every model; the final suffix, controlled drawing and project conditions must be confirmed before ordering.
