Draw-wire Sensors for AGV Forklift Lift Height

Measure AGV fork and mast height with compact absolute draw-wire displacement feedback.

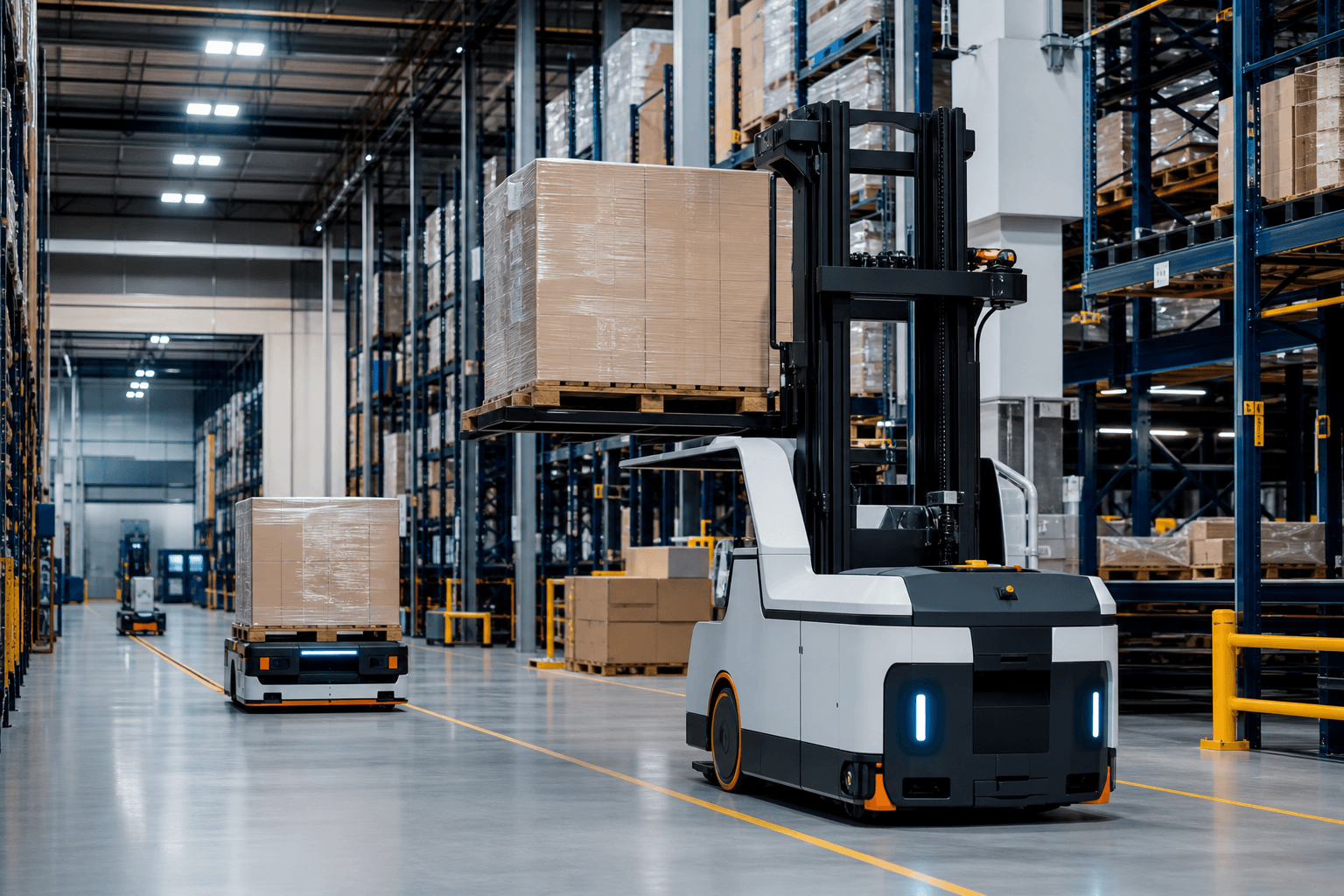

Draw-wire Sensors for AGV Forklift Lift Height machine and operating environment
WHAT MOVES ON THIS MACHINEfork or mast lift height

01 · THE MACHINE

fork or mast lift height

A draw-wire displacement sensor measures fork or mast lift height by extending a spring-retracted stainless-steel cable from a fixed sensor body to the moving point. The correct configuration combines measuring range, 10- or 12-bit absolute resolution (or 1,000/2,000 PPR incremental output), controller interface and IP54, IP68 or project-confirmed Ex protection.

In plain termsFirst identify the movement the controller needs to know. Only then choose the encoder.

02 · WHAT TO MEASURE

Fix the body to a stable reference and attach the cable only to the measured point.

protect the measuring cable through the complete mast movement and allow overtravel at both ends

  • Stable datum
  • Straight cable path
  • Overtravel allowance
Draw-wire Sensors for AGV Forklift Lift Height representative measurement point
Representative measurement point · final mounting is confirmed for the actual machine.
IP68 Waterproof Draw-wire SensorVIEW PRODUCT PAGE →

03 · RECOMMENDED PRODUCT

IP68 Waterproof Draw-wire Sensor

Select the measuring range before choosing the output and enclosure.

The selected travel determines the mechanical family, housing dimensions, winding wheel and pull force. The controller interface and environmental protection are then matched to the installation.

Measurement: fork or mast lift height0.5–10 m plus shared 12–15 m 2D optionRS485, CANopen, SSI, BiSS-C, analog and pulse optionsIP54, IP68 and project-confirmed Ex versions
View product parameters →

04 · HOW IT WORKS

From machine movement to a control decision.

The draw-wire sensor converts a moving point into a continuous linear position value.

WHAT THE SENSOR DOES

A spring-retracted measuring cable follows the moving mechanism. The internal encoder converts cable-drum rotation into an absolute digital, analog or incremental signal for the machine controller.

  1. 01MOVEMENTLinear movement
  2. 02SENSINGRange-matched draw-wire
  3. 03SIGNALPosition signal
  4. 04CONTROLPLC / RTU / controller
THE CUSTOMER'S GOAL

What the system must achieve

give the vehicle controller a continuous absolute height value after every restart

THE FOSAI CONFIGURATION

How we select the sensor

Measure the full working travel and add appropriate setup and overtravel margin. Choose 10/12-bit absolute feedback or 1,000/2,000 PPR incremental feedback. Match RS485, CANopen, SSI, BiSS-C, analog or pulse output to the controller. Approve the range-specific housing and drawing; protect the measuring cable through the complete mast movement and allow overtravel at both ends.

05 · EXPECTED RESULT

What improves after the correct feedback is installed.

Continuous travel feedback
Controller-matched output
Range-specific mechanical fit
Clear installation checks

SELECTION TABLE

Application requirement and selection response

Use this table as an initial engineering checklist. Final model configuration must be confirmed against the controller, mechanical drawing and operating environment.

Engineering questionWhat to confirm
Movementfork or mast lift height
System goalgive the vehicle controller a continuous absolute height value after every restart
Sensor selectionTravel plus overtravel margin, resolution, output and protection
Installationprotect the measuring cable through the complete mast movement and allow overtravel at both ends

ENGINEERING PROCESS

How to select the right configuration

  1. 01

    Measure the full working travel and add appropriate setup and overtravel margin.

  2. 02

    Choose 10/12-bit absolute feedback or 1,000/2,000 PPR incremental feedback.

  3. 03

    Match RS485, CANopen, SSI, BiSS-C, analog or pulse output to the controller.

  4. 04

    Approve the range-specific housing and drawing; protect the measuring cable through the complete mast movement and allow overtravel at both ends.

COMMON QUESTIONS

Frequently asked questions

Can the measuring cable carry the machine load?

No. It is a measurement element only and must never be used as a load-bearing or safety-support cable.

How is the housing selected?

The selected travel determines the BRT27 or BRT38 mechanical family, housing dimensions, winding-wheel diameter and nominal pull force.

Does IP68 cover every outdoor installation?

No. Confirm the complete assembly, cable exit, corrosion exposure, mounting orientation and the supplier's stated water test condition.

RELATED GUIDANCE

Continue your selection

Draw-wire sensor selection guideBrowse displacement sensors

EDITORIAL SCOPE

How this guidance is prepared

FOSAI consolidates available supplier technical material into a buyer-oriented selection guide. Parameters, certifications and compatibility are not generalized across every model; the final suffix, controlled drawing and project conditions must be confirmed before ordering.
