What the system must achieve
Achieve repeatable mobile-machine positioning without exposing the sensing system to uncontrolled impact, cable strain or moisture ingress.
Technical selection, cross-reference and global export supportSend a model or application →
Application guide
Encoders for Agricultural and Forestry Machinery
Select rugged absolute encoders for steering, articulation, booms and implements on agricultural and forestry machinery.

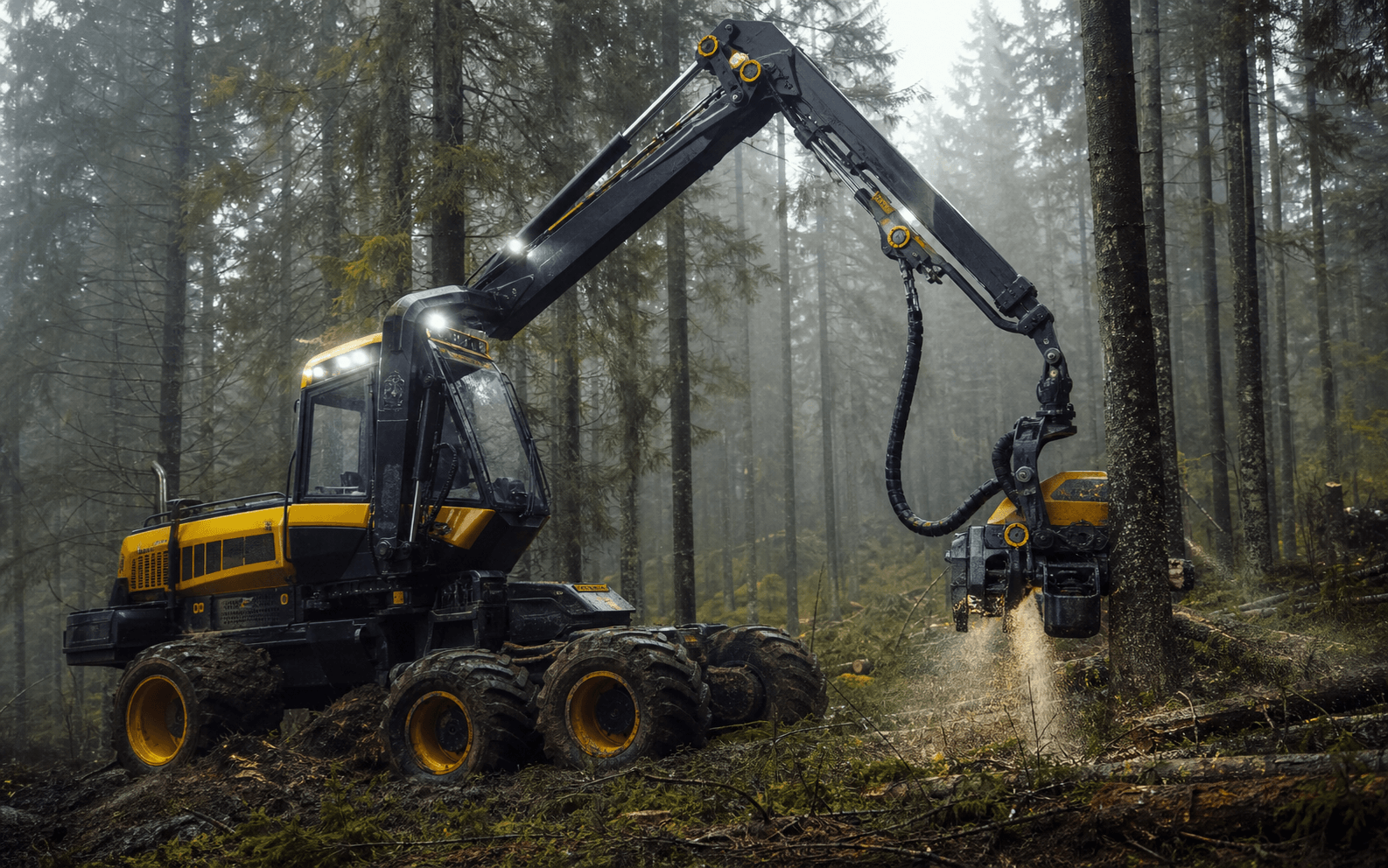

01 · THE MACHINE
Position feedback must survive the same duty as the machine.
Steering, articulation, harvesting heads, crane booms and implements are exposed to mud, vibration and frequent temperature changes. The installation needs physical protection as well as environmental sealing.
In plain termsFirst identify the movement the controller needs to know. Only then choose the encoder.
02 · WHAT TO MEASURE

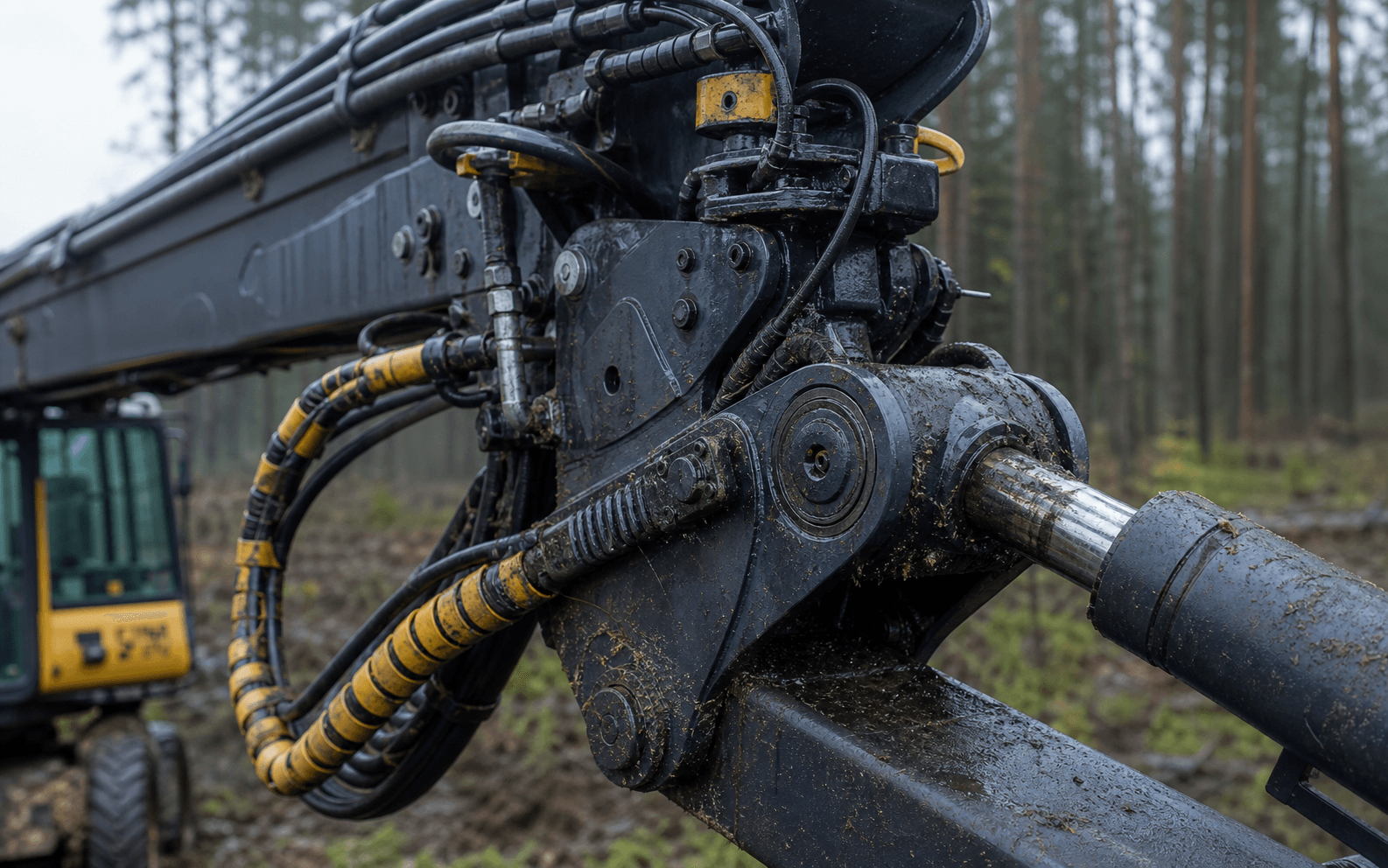

Protect the sensing point from impact and cable strain.
Forestry joints combine vibration, mud, water and moving hoses. The sensor can only remain reliable when the mounting, connector retention and physical guard are designed as one installation.
- ✓Joint-angle reference
- ✓Impact guarding
- ✓Retained harness
VIEW PRODUCT PAGE →03 · RECOMMENDED PRODUCT
CANopen IP68 Waterproof Absolute Encoder
Choose the control interface and mechanical protection together.
CANopen or RS485 can suit mobile controllers, while IP68 construction supports wet duty. Confirm shock, branch impact, cable strain, supply variation and connector retention for the actual vehicle.
✓ Steering and articulation angle✓ Forestry crane and harvesting-head position✓ Mud, rain and washdown exposure✓ CANopen and RS485 controller integration
View product parameters →04 · HOW IT WORKS
From machine movement to a control decision.
The encoder provides continuous joint and steering position while the machine works through shock, mud and weather.
WHAT THE SENSOR DOES
Steering, articulation, harvesting heads, implements and forestry crane joints are converted into digital angle data. The controller can use this feedback to coordinate movement and restore the correct operating state after power-up.
- 01MOVEMENTJoint movement
- 02SENSINGProtected encoder
- 03SIGNALCANopen / RS485
- 04CONTROLVehicle controller
How we select the sensor
Use the vehicle controller's supported interface—commonly CANopen or RS485—then select angular range, resolution and mechanical format. Add physical guarding, retained connectors and an IP68 installation reviewed for the actual wash and impact conditions.
05 · EXPECTED RESULT
What improves after the correct feedback is installed.
SELECTION TABLE
Mobile machine position tasks
Use this table as an initial engineering checklist. Final model configuration must be confirmed against the controller, mechanical drawing and operating environment.
Machine taskWhat to specify
Steering or articulationAbsolute angular range, direction, mechanical linkage and controller interface
Forestry crane boomSingle-turn or multi-turn range according to the joint and gearing
Harvesting head or implementCompact protected encoder with guarded cabling and adequate shock resistance
Linear cylinder or outriggerDraw-wire sensor only where alignment and cable protection can be maintained
ENGINEERING PROCESS
How to select the right configuration
- 01
Map each measured joint and its real operating range.
- 02
Match the vehicle controller interface, supply and update requirements.
- 03
Confirm resolution, mounting envelope, shaft or bore and cable direction.
- 04
Review shock, vibration, pressure washing, mud, temperature and physical guarding.
RELEVANT PRODUCTS
Technical product pages
CANopen IP68 Waterproof Absolute Encoder
Stainless-steel IP68 absolute feedback for washdown and outdoor machinery.
View parameters and drawings →RS485 Modbus RTU IP68 Waterproof Absolute Encoder
Stainless-steel IP68 absolute feedback for washdown and outdoor machinery.
View parameters and drawings →
IP68 Waterproof Draw-wire Sensor
Protected linear-position measurement for outdoor, washdown and water-infrastructure applications.
View parameters and drawings →COMMON QUESTIONS
Frequently asked questions
Is CANopen preferred for forestry machinery?
CANopen is useful when the vehicle controller already supports it. Protocol, object behavior and network settings must match; raw CAN and CANopen are not interchangeable.
Why use an absolute encoder for steering?
It can provide steering position immediately after power-up without relying on a homing movement.
Does IP68 cover pressure washing?
Not automatically. Pressure, distance, temperature, chemicals, connector sealing and the supplier test condition must be checked.
