WQD-V Sewage Submersible Pumps. Float-controlled sewage drainage.

The WQD-V series is a single-phase sewage submersible-pump range intended for automatic drainage. The supplier describes a downward-swirling suction structure to reduce clogging, a float switch for unattended start and stop, and a capacitor-driven asynchronous motor with thermal protection. Suitability for corrosive liquids, grit, fibers and solids depends on the actual medium and confirmed wetted materials.

DIFFERENT SEWAGE SERIESNeed stainless flanged wastewater duty? View WQ(D)-S →
01Rated flow5–16 m³/h
02Rated head5–10 m
03Motor range0.18–1.1 kW
Compare WQD-V modelsSee exploded view

ENGINEERING DETAILS

Control, protection and operating limits.

The product introduction is summarized above. This section continues with the functional design, permitted operating conditions and model-code structure.

DESIGN & OPERATION
01

Downward-swirling intake

The supplier describes a downward suction arrangement intended to reduce blockage and improve drainage.

02

Automatic level control

A float switch starts and stops the pump with changing water level; provide enough free travel in the sump.

03

Single-phase drive

The WQD-V sheet identifies a capacitor-driven asynchronous motor for the listed single-phase family.

04

Thermal protection

The supplier describes a motor thermal protector for over-temperature events. Its additional over-pressure claim is not detailed on this sheet; verify control and restart behavior for the ordered unit.

CONFIRM BEFORE INSTALLATION
  1. 01

    The supplied sheet does not state a permitted immersion depth, liquid temperature, pH or maximum solids size; confirm these limits before specifying a site.

  2. 02

    Check outlet size, required flow and total dynamic head at the actual duty point rather than using maximum values as the rated condition.

  3. 03

    Allow unobstructed float-switch movement and confirm minimum wet-well level, anti-dry-run behavior and power supply for the exact model.

  4. 04

    Describe fibers, grit, chemicals and corrosive content so passage size, seals and wetted materials can be approved.

APPLICATION FIT

Is this the right pump family?

Use the application and construction check below before comparing model numbers. Final selection is always made at the actual operating point.

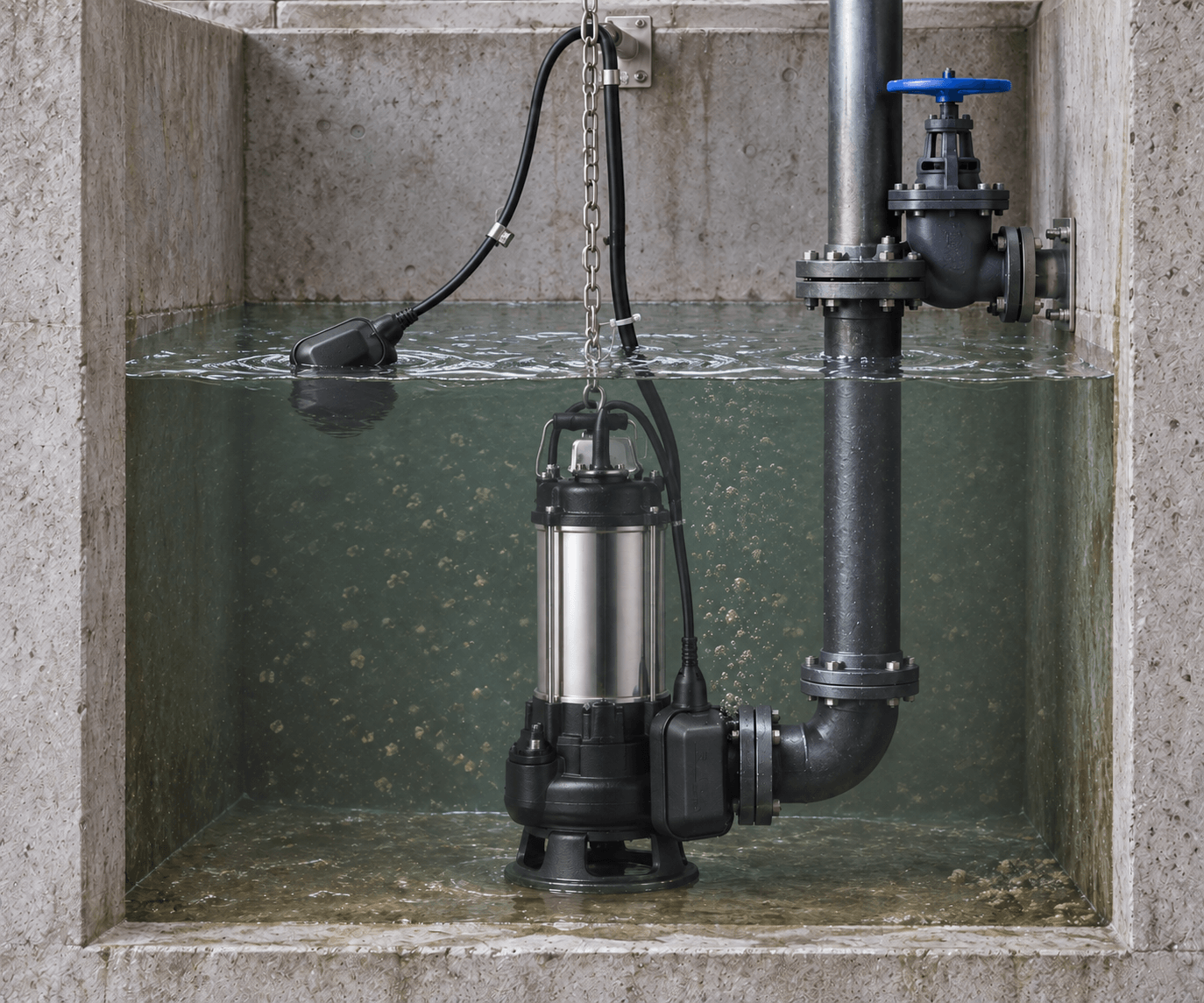

WQD-V Sewage Submersible Pumps illustrative installation environment
WASTEWATER INFRASTRUCTURE · INSTALLATION VISUALIZATIONSelected around the wet well, solids and discharge line.
BEST SUITED TO
01

Automatic sump drainage

Float-controlled operation where its travel and minimum water level are accommodated.

02

Domestic wastewater transfer

Confirm actual solids and liquid compatibility before choosing a model.

03

Small sewage wet wells

Select the pump at rated flow and total head, with the outlet arrangement checked.

04

Unattended drainage

Confirm thermal trip, power supply, restart and service access for the ordered configuration.

VERIFY BEFORE SELECTION
ControlFloat-switch start and stop
MotorSingle-phase capacitor-driven asynchronous
ProtectionSupplier-described thermal protector
Rated flow range5–16 m³/h in the seven listed models
Rated head range5–10 m in the seven listed models
Outlet1.5–2 in. depending on model

MODEL SELECTION

Compare the operating range.

Shortlist by flow and total head first. Motor power, connection and construction are verified after the duty point is known.

The supplied WQD-V table is reproduced as provided. Its V750F entry shows a 10 m rated head but a 9 m maximum head, which is internally inconsistent; confirm that entry and the unusual V1100F packing dimensions with the manufacturer before specifying either model.

ModelRated powerPower (HP)Rated flowRated headMaximum flowMaximum headOutletGross weightPacking dimensions
WQD-V180F0.18 kW0.24 HP5 m³/h5 m6 m³/h8.2 m1.5"8.2 kg215 × 160 × 405 mm
WQD-V250F0.25 kW0.34 HP5 m³/h5 m9 m³/h7.5 m1.5"8.5 kg215 × 160 × 405 mm
WQD-V370F0.37 kW0.5 HP5 m³/h7 m12 m³/h8.5 m1.5"8.7 kg215 × 160 × 405 mm
WQD-V450F0.45 kW0.6 HP5 m³/h7 m12.5 m³/h10 m2"11.5 kg260 × 200 × 510 mm
WQD-V550F0.55 kW0.75 HP7 m³/h7 m10 m³/h12 m2"13.85 kg260 × 200 × 510 mm
WQD-V750F0.75 kW1 HP10 m³/h10 m20 m³/h9 m2"17.6 kg260 × 200 × 510 mm
WQD-V1100F1.1 kW1.5 HP16 m³/h5 m20 m³/h9 m2"20.2 kg500 × 270 × 235 mm
Catalog reference · LBA PRO WQD-V sewage submersible pump sheet; product introduction and seven-model technical tableNeed help choosing? Send the duty point →

TECHNICAL LIBRARY

WQD construction and 30 parts.

Switch between the actual pump photograph and a realistic 3D exploded reconstruction based on your original-factory 30-part section. The original part names remain readable text below.

原厂 30 件资料 · 3D 展开重建

The 30-part names come from your supplied original-factory WQ(D) threaded-outlet section. The expanded image is newly generated from that section and the WQD-V product photo; it is a realistic visual reconstruction, not the original factory CAD or a verified spare-parts drawing. Confirm the exact ordered configuration before service.

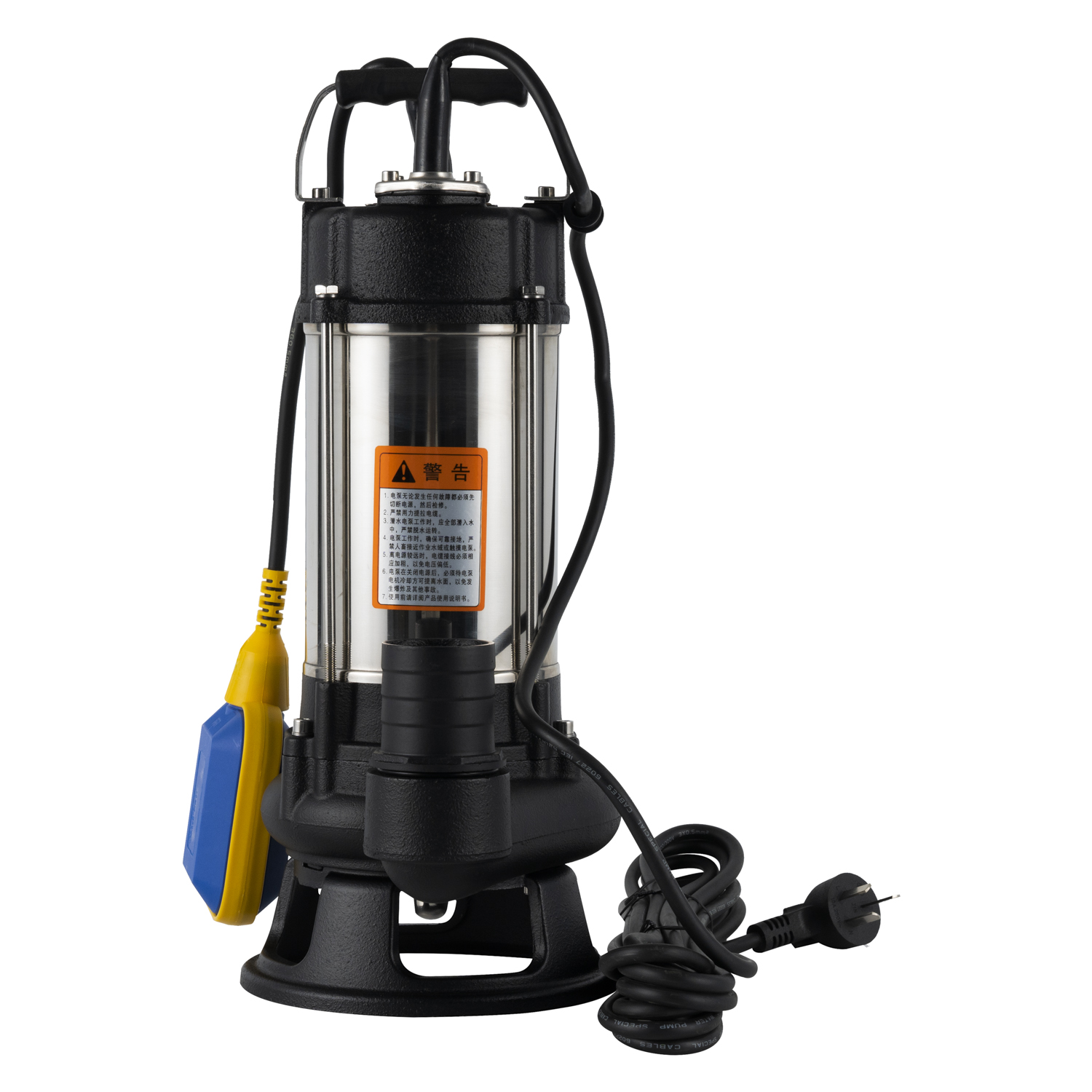

Actual assembled WQD-V sewage pump with stainless motor shell, black pump body and blue-and-yellow float switch
合并状态：WQD-V 产品实物主图。

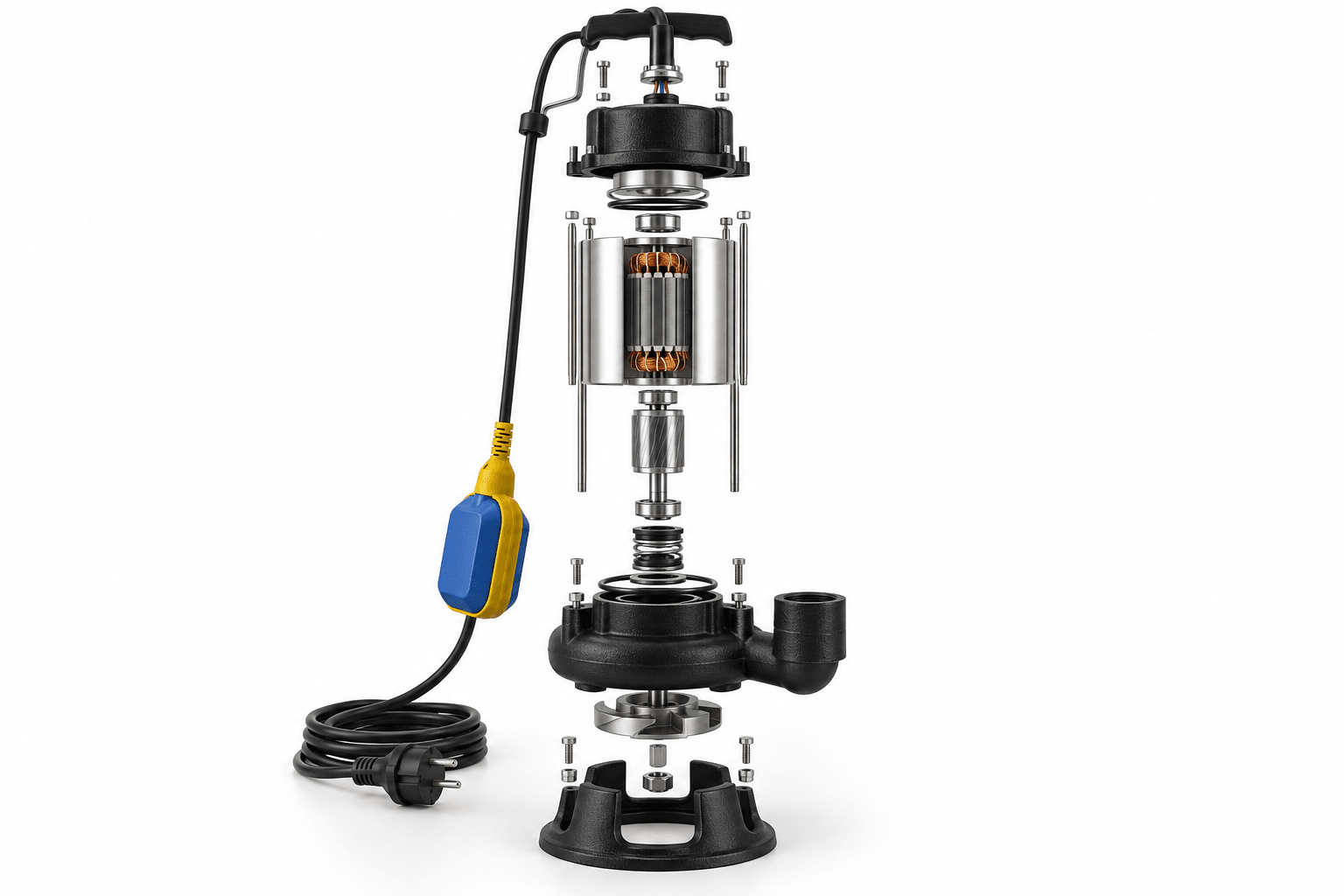

Realistic 3D exploded reconstruction of WQD-V sewage pump, showing cover, motor, rotor, seals, volute, impeller, outlet, base and float control
展开状态：依照原厂 30 件剖面资料及产品照片重建的 3D 展示图；不是原厂 CAD 文件或精确订货图。
原厂资料零部件名称 · 01–30
  1. 01提手
  2. 02电缆组件
  3. 03内六角螺钉
  4. 04电缆护套
  5. 05顶盖
  6. 06接线帽
  7. 07引出线护套
  8. 08十字槽盘头螺钉
  9. 09上轴承座
  10. 10深沟球轴承
  11. 11有绕组定子铁芯
  12. 12转子
  13. 13机筒
  14. 14深沟球轴承
  15. 15机械密封
  16. 16内六角螺钉
  17. 17机械密封
  18. 18泵体
  19. 19底座
  20. 20叶轮
  21. 21平键
  22. 22螺母
  23. 23螺栓
  24. 24油缸盖
  25. 25O形圈
  26. 26出水口
  27. 27一字槽螺钉
  28. 28密封垫
  29. 29螺栓
  30. 30内六角螺钉

编号和名称按您提供的 WQ(D) 丝口污水泵原厂图整理。WQD-V 实际型号的结构、接口及订货零件号，请以厂家确认的资料为准。
