QDX Aluminum Submersible Pumps. Submerged clean-water transfer, selected by duty.

QDX is a portable submerged centrifugal pump family for clean-water transfer in rural wells, farm irrigation, construction drainage, garden watering, pond drainage and household supply. The catalog distinguishes an aluminum-shell group from a later cast-iron pump-case group; body material and outlet configuration must be confirmed against the exact model before ordering.

01Immersion depthUp to 5 m

02Liquid temperatureUp to +40 °C

03ConstructionAluminum / cast-iron variants

Compare QDX models Send duty point

ENGINEERING DETAILS

Control, protection and operating limits.

The product introduction is summarized above. This section continues with the functional design, permitted operating conditions and model-code structure.

DESIGN & OPERATION

Submerged centrifugal layout

The motor, pump body and seal operate as one immersed assembly; the lower intake screen protects the hydraulic inlet.

Double-end mechanical seal

The catalog describes a dynamic seal with double-end mechanical sealing, plus a static oil-resistant O-ring seal.

Built-in protection

An internal thermal protector monitors the motor in normal operation.

Two construction groups

The catalog separates lightweight aluminum-shell versions from variants with a cast-iron pump case; do not assume identical materials across all QDX models.

OPERATING CONDITIONS

01
Maximum liquid temperature: +40 °C; permitted pH: 6.5–8.5.
02
Solid impurities ≤0.1% by volume, with particle size ≤0.2 mm; this is not a sewage or solids-handling pump.
03
Maximum diving depth: 5 m. Keep the screened inlet immersed and avoid operating dry.
04
Catalog supply: 50 Hz, single-phase 220 V or three-phase 380 V by configuration; confirm the exact model and supply before ordering.

MODEL CODEQ D X 1.5 - 12 - 0.25

01Q
Submersible pump
02D
Single-phase motor designation (omitted on three-phase versions)
03X
Lower-pump configuration
041.5
Rated flow in m³/h
0512
Rated head in metres
060.25
Motor rated power in kW

APPLICATION FIT

Is this the right pump family?

Use the application and construction check below before comparing model numbers. Final selection is always made at the actual operating point.

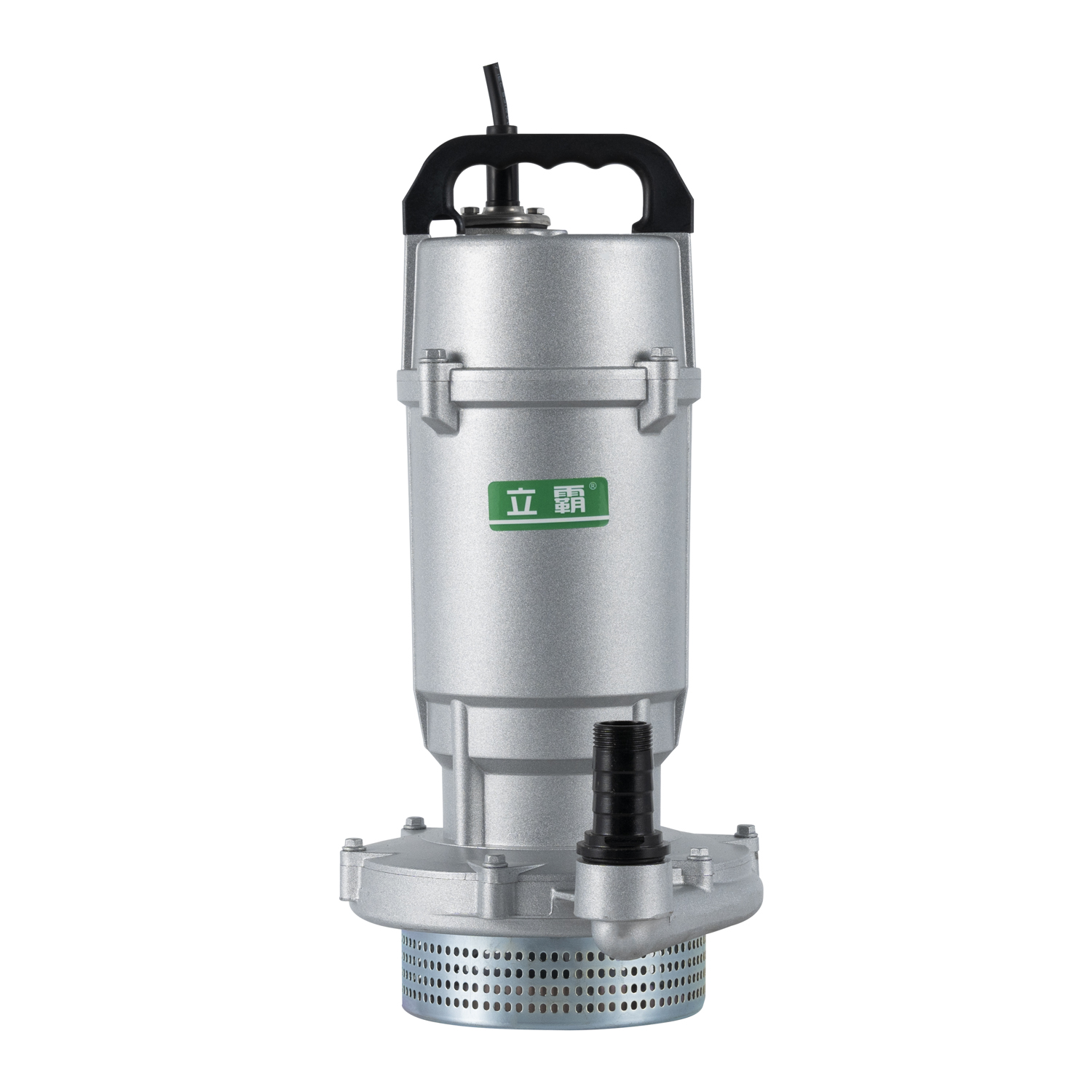

QDX submersible pump, showing the lifting handle, side outlet and screened lower inlet — SUBMERGED INSTALLATION · PLACEMENT GUIDEScreened inlet below water. Outlet, cable and lifting point supported above.

BEST SUITED TO

Farm irrigation

Submerged clean-water transfer.

Construction drainage

For water within the stated solids limit.

Pond drainage

Confirm liquid and cable length.

Rural water supply

Select at the required operating point.

VERIFY BEFORE SELECTION

Pump typeClean-water submersible centrifugal

Maximum immersion5 m

Maximum liquid temperature+40 °C

Liquid pH6.5–8.5

Suspended solids≤0.1%; particle size ≤0.2 mm

SealingDouble-end mechanical seal and O-rings

MODEL SELECTION

Compare the operating range.

Shortlist by flow and total head first. Motor power, connection and construction are verified after the duty point is known.

The supplied catalog separates aluminum-shell examples from cast-iron pump-case examples. This hydraulic table comes from a later model revision; verify the casing material, voltage, dimensions and weight for the exact ordered configuration.

Model	Rated flow	Rated head	Rated power	Voltage	Current	Pipe diameter	Overall dimensions	Net weight	Head range
01 · Aluminum-shell examples in supplied catalog Material classification follows the catalog grouping; confirm the revised model configuration.
QDX1.5-12-0.25	1.5 m³/h	12 m	0.25 kW	220 V	2.1 A	25 mm	185 × 129 × 325 mm	4.5 kg	5–13 m
QDX1.5-17-0.37	1.5 m³/h	17 m	0.37 kW	220 V	2.9 A	25 mm	190 × 135 × 360 mm	6.5 kg	4–18 m
QDX1.5-25-0.55	1.5 m³/h	25 m	0.55 kW	220 V	4.1 A	25 mm	225 × 164 × 375 mm	9 kg	17–26 m
QDX10-12-0.55	10 m³/h	12 m	0.55 kW	220 V	4.1 A	38 mm	210 × 151 × 380 mm	9 kg	7–15 m
QDX3-18-0.55	3 m³/h	18 m	0.55 kW	220 V	4.1 A	32 mm	205 × 161 × 375 mm	10.5 kg	5–21 m
QDX15-7-0.55	15 m³/h	7 m	0.55 kW	220 V	4.1 A	51 mm	223 × 161 × 390 mm	9 kg	2–9 m
QDX1.5-32-0.75	1.5 m³/h	32 m	0.75 kW	220 V	5.2 A	25 mm	237 × 181 × 395 mm	11 kg	17–32 m
QDX3-24-0.75	3 m³/h	24 m	0.75 kW	220 V	5.2 A	32 mm	215 × 164 × 395 mm	11 kg	14–25 m
QDX8-18-0.75	8 m³/h	18 m	0.75 kW	220 V	5.2 A	38 mm	225 × 151 × 400 mm	10.5 kg	15–19 m
QDX10-16-0.75	10 m³/h	16 m	0.75 kW	220 V	5.2 A	51 mm	230 × 160 × 400 mm	10.5 kg	10–19 m
QDX15-10-0.75	15 m³/h	10 m	0.75 kW	220 V	5.2 A	64 mm	245 × 171 × 410 mm	11 kg	3–11 m
QDX3-30-1.1	3 m³/h	30 m	1.1 kW	220 V	7.3 A	25 mm	230 × 176 × 430 mm	14 kg	0–31 m
02 · Cast-iron pump-case examples in supplied catalog Material classification follows the catalog grouping; confirm the revised model configuration.
QDX30-6-0.75	30 m³/h	6 m	0.75 kW	220 V	5.2 A	76 mm	265 × 191 × 445 mm	12.5 kg	0–9 m
QDX15-15-1.1 (DN51)	15 m³/h	15 m	1.1 kW	220 V	7.3 A	51 mm	244 × 170 × 454 mm	15.5 kg	14–18 m
QDX15-15-1.1 (DN64)	15 m³/h	15 m	1.1 kW	220 V	7.3 A	64 mm	244 × 170 × 454 mm	15.5 kg	0–18 m
QDX40-7-1.1	40 m³/h	7 m	1.1 kW	220 V	7.3 A	76 mm	265 × 188 × 485 mm	17 kg	0–9 m
QDX15-18-1.5 (DN50)	15 m³/h	18 m	1.5 kW	220 V	9.5 A	50 mm	239 × 170 × 478 mm	19 kg	8–19 m
QDX15-18-1.5 (DN64)	15 m³/h	18 m	1.5 kW	220 V	9.5 A	64 mm	239 × 170 × 478 mm	19 kg	8–19 m
QDX40-9-1.5	40 m³/h	9 m	1.5 kW	220 V	9.5 A	76 mm	265 × 188 × 512 mm	21 kg	3–13 m
QDX50-7-1.5	50 m³/h	7 m	1.5 kW	220 V	9.5 A	102 mm	287 × 217 × 509 mm	21 kg	2–13 m
QDX65-8-2.2	65 m³/h	8 m	2.2 kW	220 V	11 A	102 mm	294 × 220 × 502 mm	28.5 kg	2–14 m
QDX20-26-2.2	20 m³/h	26 m	2.2 kW	220 V	11 A	50 mm	294 × 220 × 502 mm	25 kg	8–28 m
QDX40-15-2.2	40 m³/h	15 m	2.2 kW	220 V	11 A	76 mm	294 × 220 × 502 mm	25 kg	3–17 m

Catalog reference · LBA PRO QDX technical sheet for conditions, structure and model code; hydraulic model table revision 260108A, page 1Need help choosing? Send the duty point →

TECHNICAL LIBRARY

Explore the pump construction.

Switch between the complete pump and its construction view, then use the numbered parts index for identification.

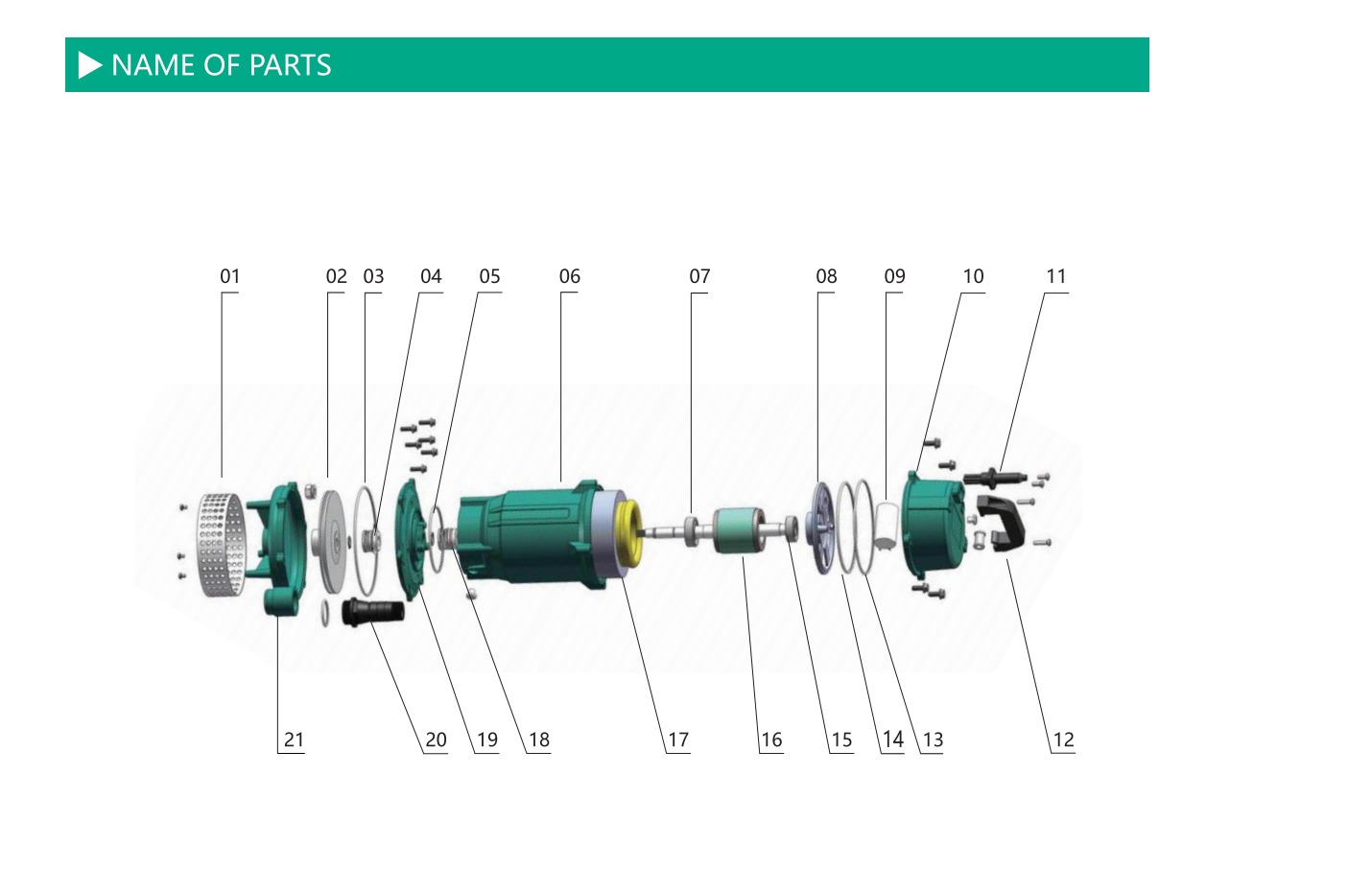

Complete / exploded viewOriginal LBA PRO QDX exploded drawing · 21 numbered components
