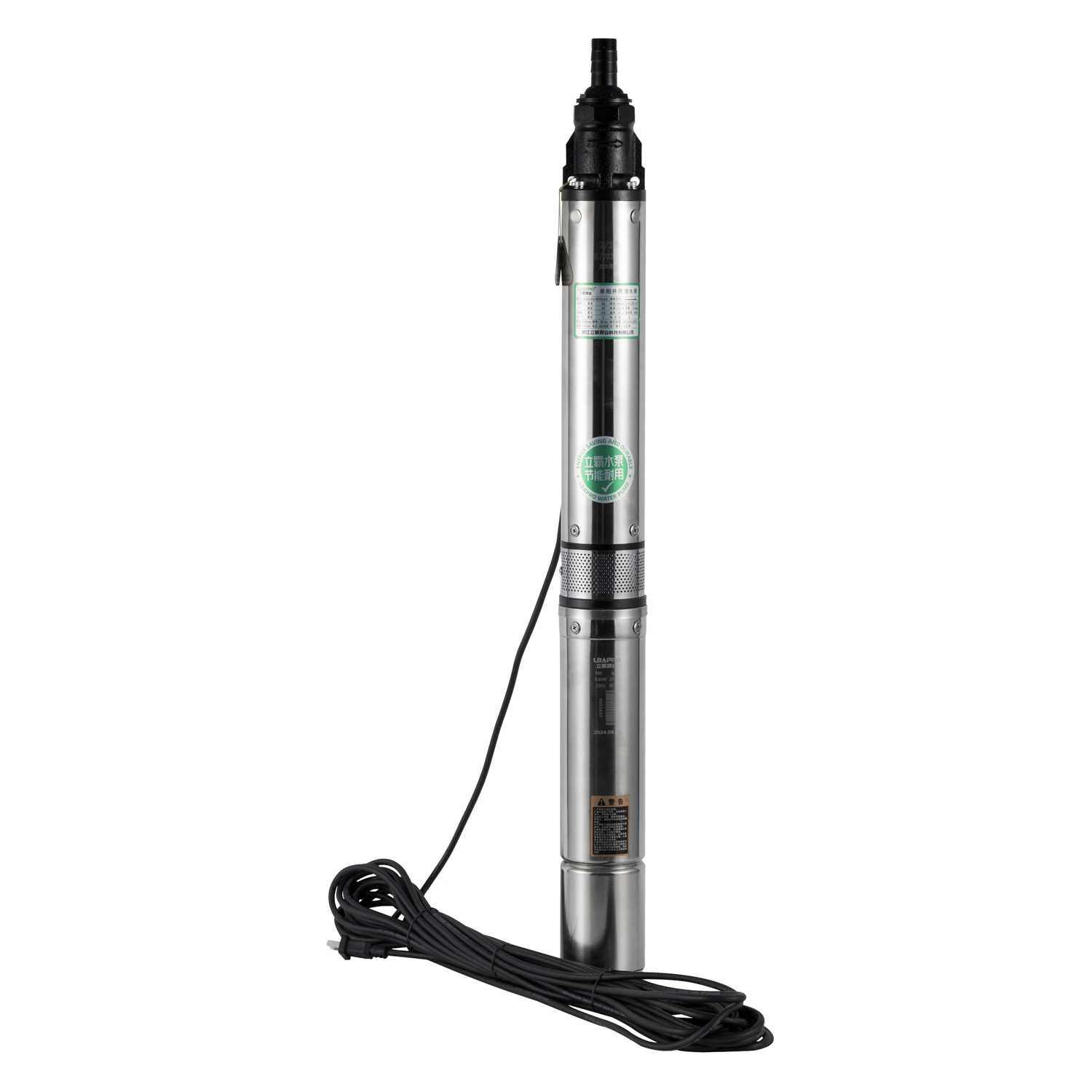

ACTUAL PRODUCT PHOTOY80QJD
Y80QJD + Y90QJD · OIL-FILLED
Deep-well water supply, matched to the bore and duty point.

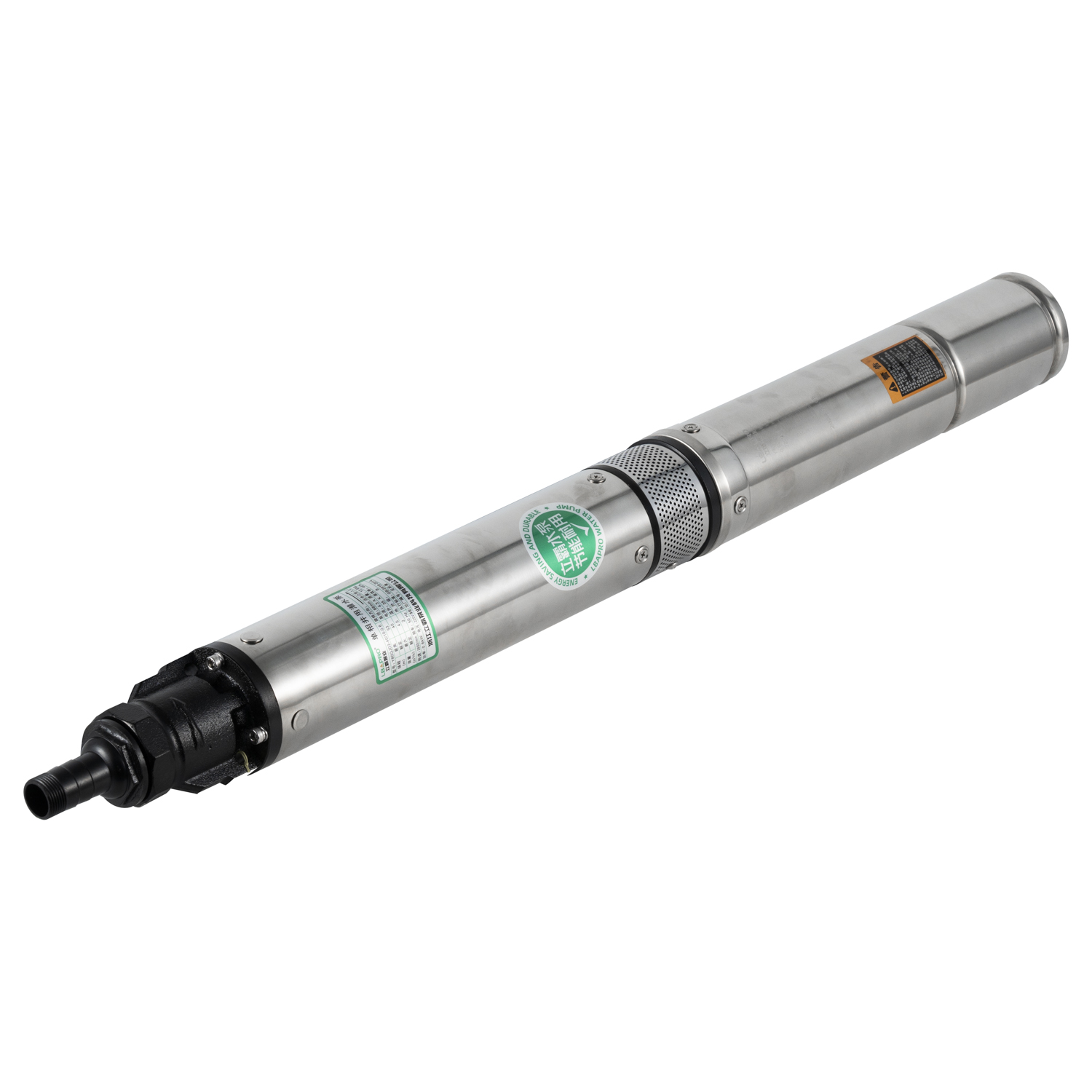

QJD pumps pair a slim multistage hydraulic section with an oil-filled motor. Y80 covers 2 and 3 m³/h rated-flow families; Y90 extends the choice from 2 to 15 m³/h. Select by the actual flow, total head and well clearance.
01Y80QJD2 / 3 m³/h
02Y90QJD2–15 m³/h
03Listed supply220 V
PRODUCT INFORMATION
Built for submerged, multistage lifting.
The right series is determined by the well and operating point—not motor power alone.
Head from repeated stages
Impeller and diffuser stages raise pressure. Use the Q–H curve to check the head available at required flow.
Oil-filled motor
The submerged cylindrical motor drives the stage stack. Confirm voltage, cable and protection for the ordered model.
Bore clearance matters
Check the pump's actual outside diameter against the well casing, including the cable and installation tolerance.
APPLICATION FIT
Start with the well, then the curve.
Dynamic water level, pipe losses and required outlet pressure define the total head. Well diameter determines which pump can be installed safely.
TYPICAL DUTIES01 02 03 04
Groundwater supply
Use the required outlet flow and drawdown level to calculate the duty point.
Farm irrigation
Match the operating flow to the irrigation zone and its pressure losses.
Livestock watering
Confirm the daily demand and storage or trough-filling schedule.
Long-head water transfer
Include lift, delivery-pipe friction and outlet pressure in total head.
CHECK BEFORE SELECTION
Well geometryCasing diameter, depth and pump setting level
HydraulicsFlow, dynamic water level, discharge elevation, pressure and friction loss
Water conditionTemperature, sand content and intended use
Electrical supplyVoltage, phase, frequency, motor protection and control method
MODEL SELECTION
Compare Y80 and Y90 at the real duty point.
Choose the flow family first. Then compare model head, connection and power, with Q–H data and construction below.
MODEL RANGE
Y80QJD specifications
Compact 220 V oil-filled multistage borehole pumps with 2 and 3 m³/h rated-flow families for small-well water supply.
6models to compare
| Model | Rated flow | Rated head | Maximum head | Power | Outlet |
|---|---|---|---|---|---|
| Y80QJD2-40/10-0.6 | 2 m³/h | 40 m | 53 m | 0.6 kW | 1" |
| Y80QJD2-48/12-0.8 | 2 m³/h | 48 m | 63 m | 0.8 kW | 1" |
| Y80QJD2-56/14-0.9 | 2 m³/h | 56 m | 74 m | 0.9 kW | 1" |
| Y80QJD3-38/10-0.6 | 3 m³/h | 38 m | 43 m | 0.6 kW | 1" |
| Y80QJD3-46/12-0.8 | 3 m³/h | 46 m | 52 m | 0.8 kW | 1" |
| Y80QJD3-54/14-0.9 | 3 m³/h | 54 m | 60 m | 0.9 kW | 1" |
Check the ordered model's dimensions and electrical data before installation. For Y80, one catalog shows Ø88 mm while a later model list shows Ø92 mm; confirm the actual outside diameter against the well casing.
SELECTED HYDRAULIC FAMILY
Y80QJD · 2 m³/h family
FLOW RANGE0–4 m³/h
HEAD ENVELOPE0–80 m
ACTIVE CURVE
Y80QJD2-56/14-0.9
Every circular marker reproduces a value from the supplied Y80QJD technical table. The connecting line uses shape-preserving interpolation and does not create additional measurements.
| Flow Q | 0 m³/h | 1 m³/h | 1.5 m³/h | 2 m³/h | 3 m³/h | 4 m³/h |
|---|---|---|---|---|---|---|
| Head H | 74 m | 70 m | 66 m | 56 m | 40 m | 15 m |
PRODUCT CONSTRUCTION
See the QJD assembly, complete and expanded.
Switch views, then select a structural group to understand its role. The exact number of stages and service components depends on the ordered model.
03 / 06 · Multistage hydraulics
Impellers and diffusers
Repeated stages add head; the stage count changes with the selected model.

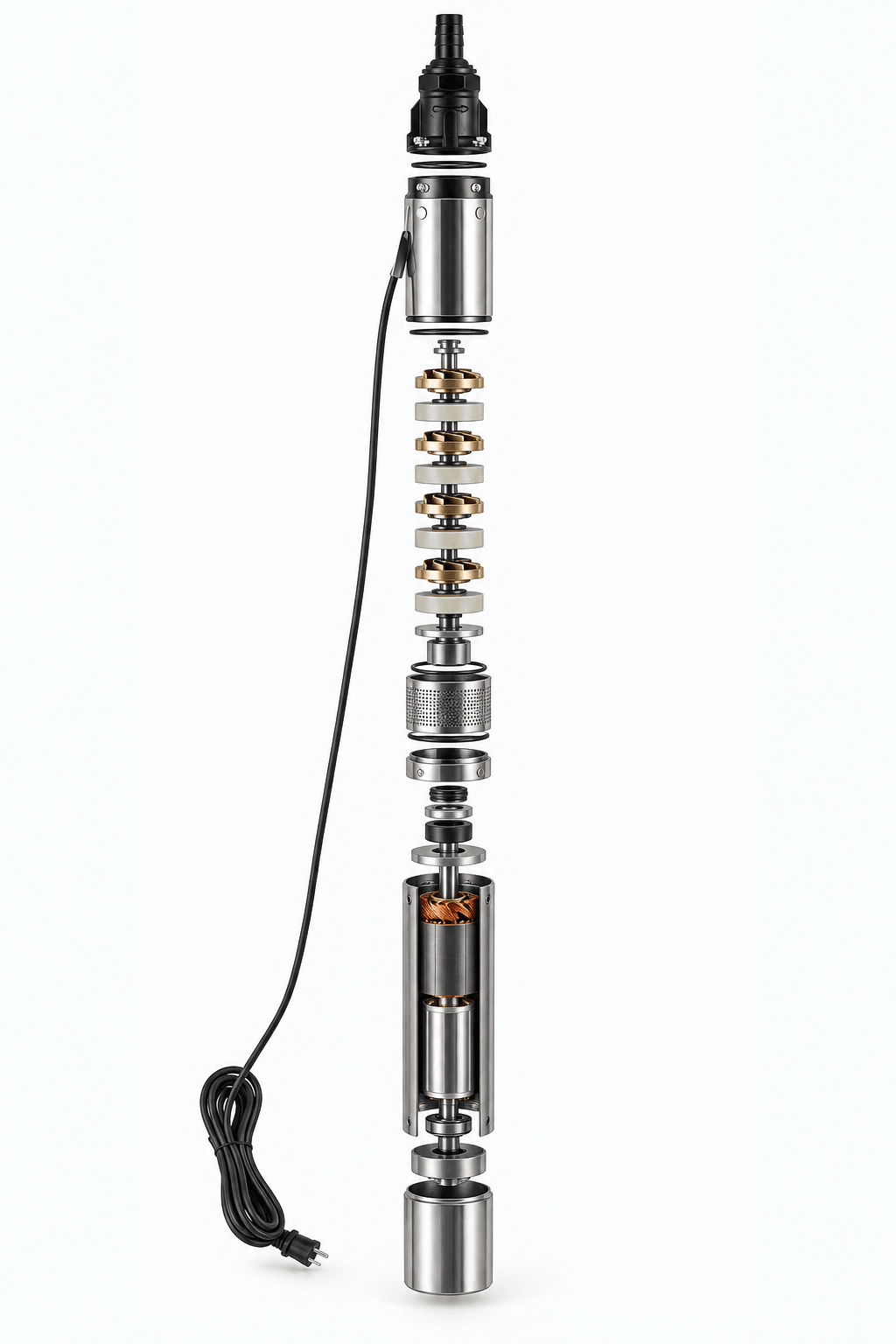

The expanded image is a new visual reconstruction, not original-factory CAD or a verified spare-parts drawing. Do not use its visual details as orderable part numbers.
COMMON QUESTIONS
Before specifying a QJD pump
What must be confirmed before quotation?
Provide bore diameter, static and dynamic levels, required flow and pressure, pipe details and power supply.
Is rated head the same as the operating head?
No. Selection should use the pump curve at the required operating flow and calculated total dynamic head.
